Midrange Speaker Bang & Olufsen and Front Treble Speaker

Midrange Speaker Bang & Olufsen and Front Treble Speaker

The left front midrange speaker (R103) / right front midrange speaker (R104) / left front treble speaker (R20) / right front treble speaker (R22) is located in the front instrument panel.

Removal and installation is the same for both.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Unclip the speaker cover in the instrument panel.

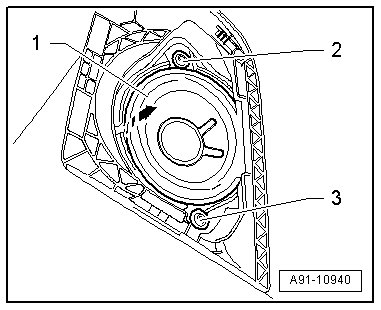

- Remove the screws - 2 - and - 3 - on the front midrange speaker - 1 - and lift the front midrange speaker - 1 - in - direction of the arrow - out of the instrument panel.






- Disconnect the connector - 1 - from the front midrange speaker - 2 -.






- Remove the front midrange speaker - 2 - from the instrument panel.

Installing

- Perform the installation in reverse order.

Tightening specifications, refer to => [ Sound Systems Overview, through 10.2008 ] Sound Systems Overview, Through 10.2008.
