Seat Height Adjuster

Seat Height Adjuster

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Safety Precautions ] Service Precautions.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Turn on the ignition.

- Disconnect the battery ground (GND) cable from the battery.

- Remove the front seat:

• Standard seat and Sport seat (manual). Refer to => [ Manual Standard Front Seat ] Manual Standard Front Seat.

- Attach the front seat to the fixture for seat repair (VAS 6136). Refer to => [ Front Seat, Installing on the ] Front Seat, Installing on the Fixture For Seat Repair (VAS 6136).

- Remove tunnel side trim panel. Refer to => [ Trim, Sill Side ] Trim, Sill Side.

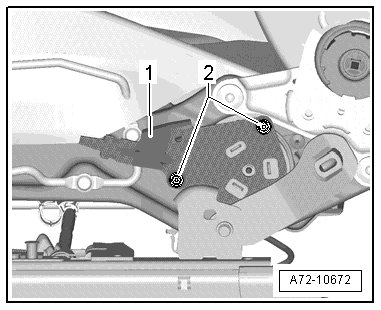

- Remove bolts - 2 - (quantity: 2).






- Remove the seat height adjustment handle - 1 -.

- Remove the lock washer - 1 -.






• The bolts - 1 - and the bolt - 3 - are different lengths.






- Remove the bolts - 1 - (quantity: 2) and - 3 - (quantity: 5).

- Remove seat height adjuster - 2 -.

Installing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Safety Precautions ] Service Precautions.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Install in reverse order of removal. Note the following:

• Make sure the connectors are installed all the way in and are secure.

Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Connect the battery ground (GND) cable with the ignition turned on.

• If the airbag indicator lamp (K75) indicates a fault after installation, the DTC memory must be checked, deleted and checked again using the vehicle diagnostic tester.

For the correct tightening specifications, refer to => [ Seat Height Adjuster and Seat Height Adjustment Handle Overview ] Seat Height Adjuster and Seat Height Adjustment Handle Overview.
