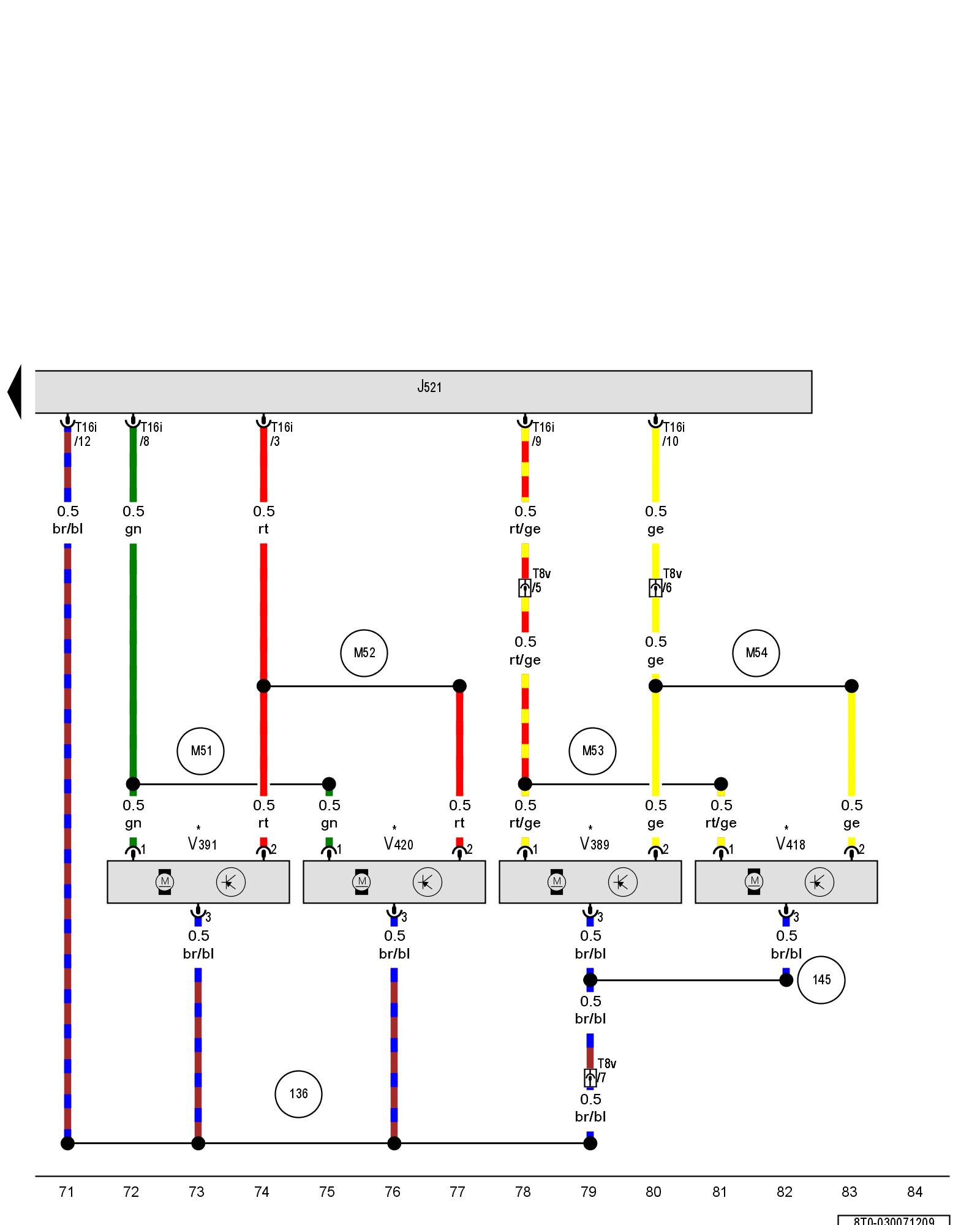

Diagram 30/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front passenger memory seat control module, Front passenger seat backrest blower fan, Front passenger seat cushion blower fan





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J521 - Front passenger memory seat control module

T8v - 8-pin connector

T16i - 16-pin connector

V389 - Front passenger seat backrest blower fan Seat Cushion and Backrest Fan Assembly Overview

V391 - Front passenger seat cushion blower fan Seat Cushion and Backrest Fan Assembly Overview

V418 - Front passenger seat backrest blower fan 2 Seat Cushion and Backrest Fan Assembly Overview

V420 - Front passenger seat cushion blower fan 2 Seat Cushion and Backrest Fan Assembly Overview

(136) - Ground connection 2 (in heated seats wiring harness)

(145) - Ground connection 3 (in heated seats wiring harness)

(M51) - Connection 1 (in front passenger seat wiring harness)

(M52) - Connection 2 (in front passenger seat wiring harness)

(M53) - Connection 3 (in front passenger seat wiring harness)

(M54) - Connection 4 (in front passenger seat wiring harness)

* - Only for vehicles with seat ventilation
