Diagram 26/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

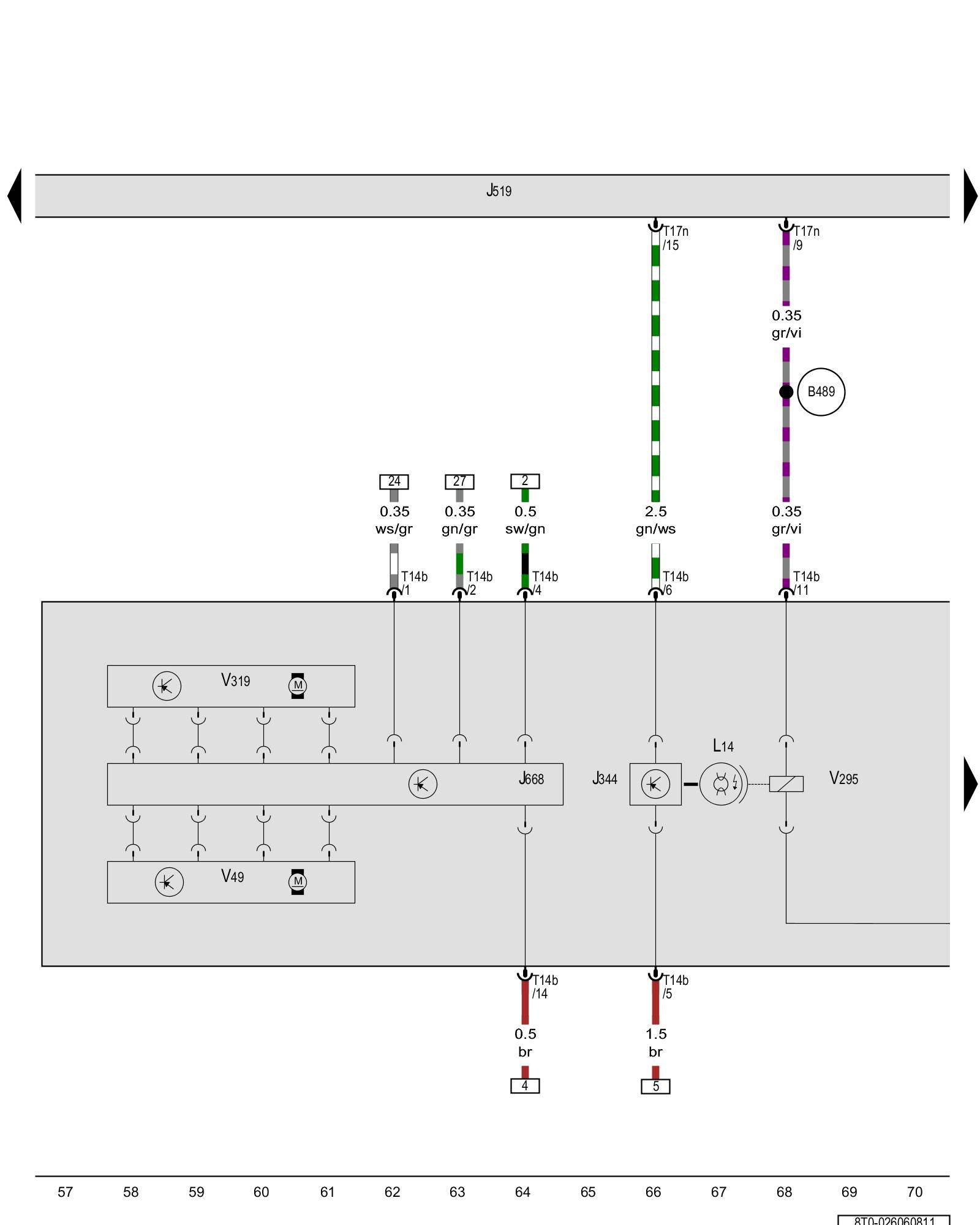

Right HID headlamp control module, Vehicle electrical system control module, Right headlamp power output stage, Right HID headlamp bulb, Right headlamp beam adjustment motor, Right low beam headlamp reflector motor, Right adaptive cornering lamp motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J344 - Right HID headlamp control module Control Modules in Front Part Of Vehicle Bi-Xenon Headlamps w/ Cornering Light Assembly Overview

J519 - Vehicle electrical system control module Overview of Control modules in interior of vehicle Coupe (2-door models)

J668 - Right headlamp power output stage Right High-intensity Gas Discharge Lamp Control Module -J344- Bi-Xenon Headlamps w/ Cornering Light Assembly Overview

L14 - Right HID headlamp bulb

T14b - 14-pin connector Right High-intensity Gas Discharge Lamp Control Module -J344-

T17n - 17-pin connector Vehicle Electrical System Control Module -J519-

V49 - Right headlamp beam adjustment motor Bi-Xenon Headlamps w/ Cornering Light Assembly Overview

V295 - Right low beam headlamp reflector motor Bi-Xenon Headlamps w/ Cornering Light Assembly Overview

V319 - Right adaptive cornering lamp motor Bi-Xenon Headlamps w/ Cornering Light Assembly Overview

(B489) - Connection 25 (in main wiring harness)

Previous Diagram 26/5 (Tracks 43-56)

Next Diagram 26/7 (Tracks 71-84)
