Fuse Panel C With Left Instrument Panel Fuse Panel

Fuse Panel C with Left Instrument Panel Fuse Panel

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing





- Pry the instrument panel side cover - 1 - up using the (3409) - arrow - and remove it.

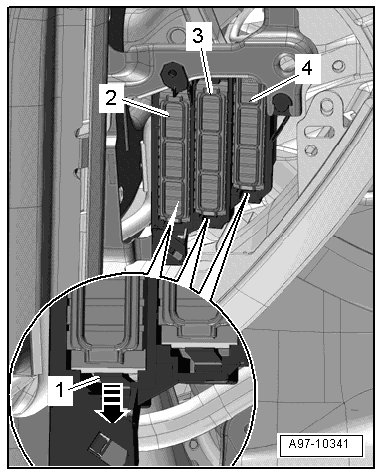

- Open the clips - 1 - in - direction of arrow - and push the fuse carriers - 2 through 4 - out of fuse panel C.





- Open the clips - arrow A - and remove fuse panel C - 2 - in - direction of arrow B - on the central tube - 1 - for the instrument panel.





Installing

Install in reverse order.
