A/T - Gearbox Warning Light ON, DTC P060B00 Stored

37 Gearbox warning light on, Fault P060B00 stored in TCM

37 12 35

2028405/1

January 26, 2012.





Affected Vehicles

Condition
Customer statement:

Customer may report gearbox warning light on.

Workshop findings:

The following entries are logged under diagnosis address 02 gearbox:

P060B00 (2528) - control unit, internal processor monitoring.

Technical Background

A software change in the diagnosis function was made.

Production Solution

Not applicable.

Service

If this fault is present, update the transmission software. SVM Update Instructions

1. Follow all instructions in the attached TSB 2011732 00 Software Version Management (SVM), operating instructions.





2. Update the Transmission control module using the SVM action code as listed in the table above if necessary.

Tip: Do not replace the mechatronics for this fault.





Warranty

Additional Information

The following Technical Service Bulletin will be necessary to complete this procedure:

^ TSB 2011732 00 Software Version Management (SVM), operating instructions.

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.

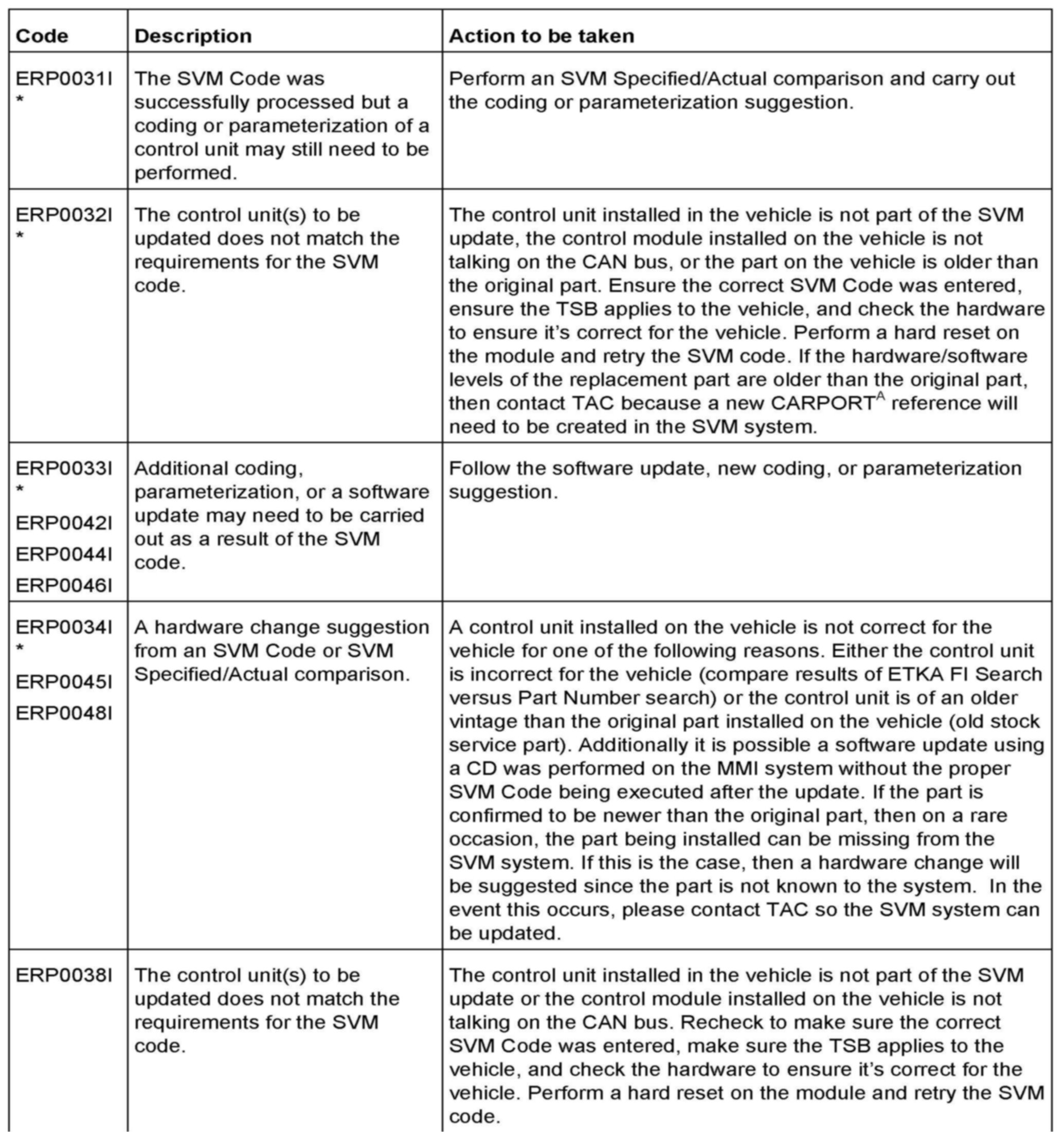

ATTACHMENT


























^ TSB 2011732 00 Software Version Management (SVM), operating instructions
