Spoiler Lower Part

Spoiler Lower Part

Removing

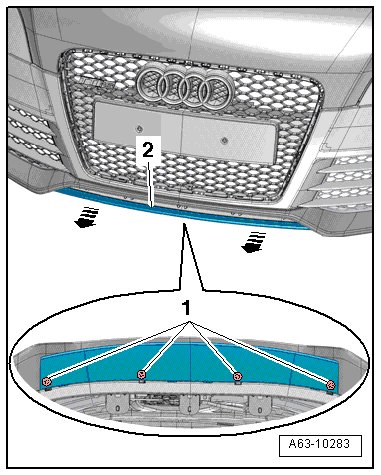

- Remove the bolts - 1 -.

- Remove spoiler lower part - 2 - on the outside starting at the bumper - arrows -.

Installation

• For the correct tightening specifications, refer to => [ Front Bumper Assembly Overview ] Front Bumper Assembly Overview.

Install in reverse order of removal. Note the following:

- During installing, the retaining tabs must engage completely in the bumper.
