Rear Bumper Spoiler

Rear Bumper Spoiler

Removing






- Remove the diffuser trim. Refer to => [ Diffuser Trim ] Diffuser Trim.

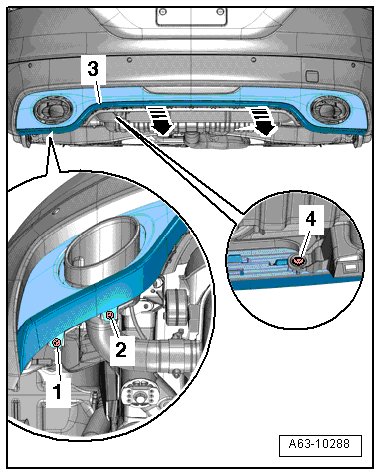

- Remove screw - 4 - on the left and right.

- Remove screws - 1 - and - 2 - on the lower trim.

- Remove lower trim - 3 - on the rear bumper - arrows -.

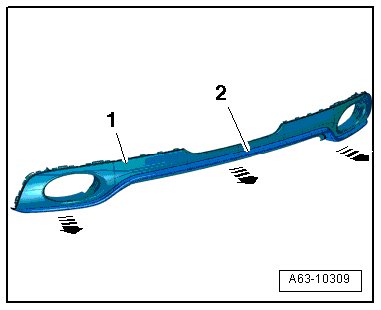

- Remove spoiler - 2 - on lower trim - 1 - - arrows -.






Installation

• For the correct tightening specifications, refer to => [ Rear Bumper Assembly Overview ] Rear Bumper Assembly Overview.

Install in reverse order of removal. Note the following:

- The spoiler and the lower trim must engage completely.

- Install the diffuser trim. Refer to => [ Diffuser Trim ] Diffuser Trim.
