Mirror Housing

Mirror Housing

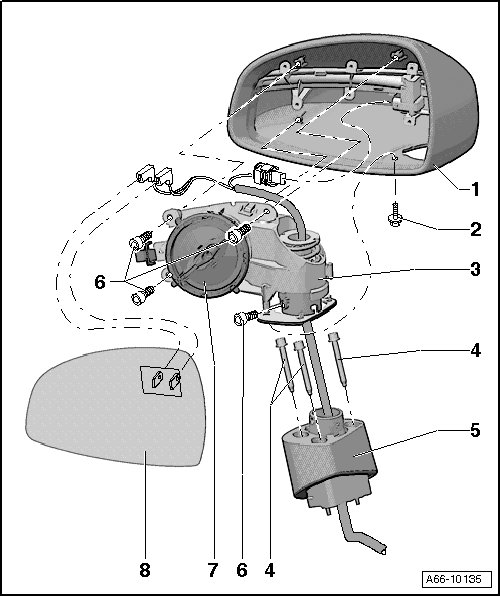

1 Mirror housing

• Remove mirror glass before removing.

Removing

- Disconnect mirror motor and mirror heating electrical connectors.

- Fold mirror all the way forward.

- Remove bolt - 6 - on mirror base.

- Remove housing upward from mirror base.

• Installation is reverse of removal, noting the following:

• The adapter must first be secured in the case of new carrier plates.

- When installing, housing must be pressed completely onto housing base before it is folded back.

2 Bolt

• 2 Nm

3 Carrier plate

4 Bolt

• 6.5 Nm

5 Mirror base housing

• Mirror housing removed

• Remove bolts - 4 - and remove mirror base over mirror adjusting cable.

6 Bolt

• 6.5 Nm

7 Mirror adjusting unit

8 Mirror glass

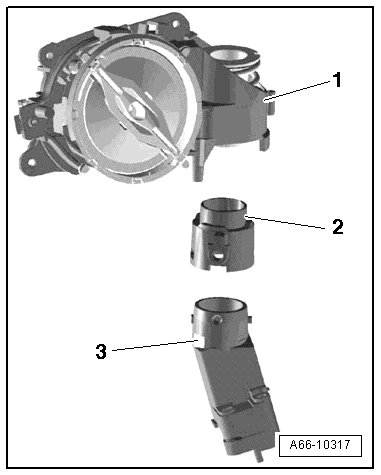

Installing Mirror Base Adapter






- In the case of new carrier plates - 1 -, the associated adapter - 2 - is not attached and must first be fastened to mirror base - 3 -.

- The carrier plate is angled forward when pressed onto the adapter and is then tilted back into the installation position.

- The adapter then engages in the carrier plate.

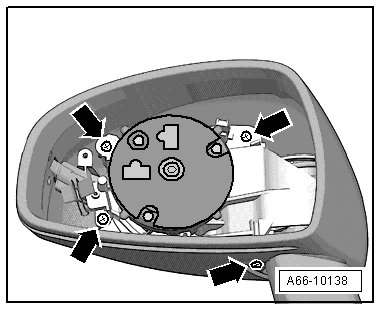

Removing Mirror Housing

- Remove bolts - arrows - from bottom side of housing and from carrier plate.






- Remove carrier plate from housing.
