Backrest Heating Element

Backrest Heating Element

Removing

- Remove cover and padding from backrest. Refer to => [ Backrest Cover and Upholstery ] Backrest Cover and Upholstery.

- Disconnect cover from upholstery. Refer to => [ Backrest Cover, Separating from Upholstery ] Backrest Cover, Separating From Upholstery.

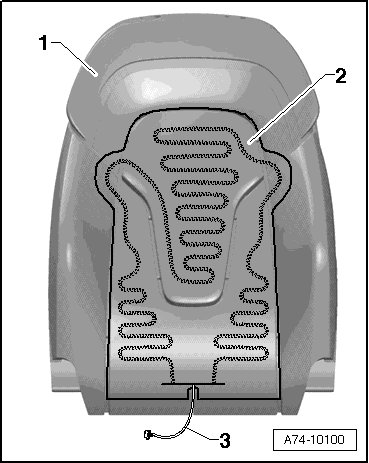

- Cut wire - 3 - from old backrest heating element - 2 -.






• The old backrest heating element remains on the upholstery - 1 - and the new backrest heating element is bonded over it.

Installation

- Center the new backrest heating element - 2 - on the cushion - 1 -.

- Remove protective film and bond new backrest heating element - 2 - to upholstery - 1 - and the old backrest heating element.

Make sure the new backrest heating element is affixed to the old heating element.

Further installation is performed in the reverse order of removal.
