Seat Pan Cover, Separating From Upholstery
Seat Pan Cover, Separating from Upholstery
Special tools, testers and auxiliary items required
• Upholstery clip pliers (V.A.G 1634)
Removing
- Remove cover and upholstery from seat pan. Refer to => [ Seat Pan Cover and Upholstery ] Seat Pan Cover and Upholstery.
- Remove the cover - 1 - from the upholstery - 2 - as far as possible.
- Cut through the upholstery clips - 3 - using pliers - 4 -.

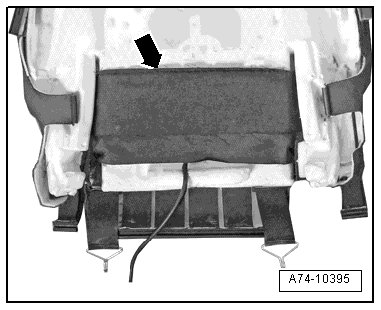

- On vehicle from 09.09, pull the seat cushion out of the cloth loop - arrow -.
- Remove cover from cushion.
Installation
Install in reverse order of removal. Note the following:
- Use new upholstery clips.
- Close wire clips with upholstery clip pliers (V.A.G 1634).
- Place the upholstery clips in their original locations.
