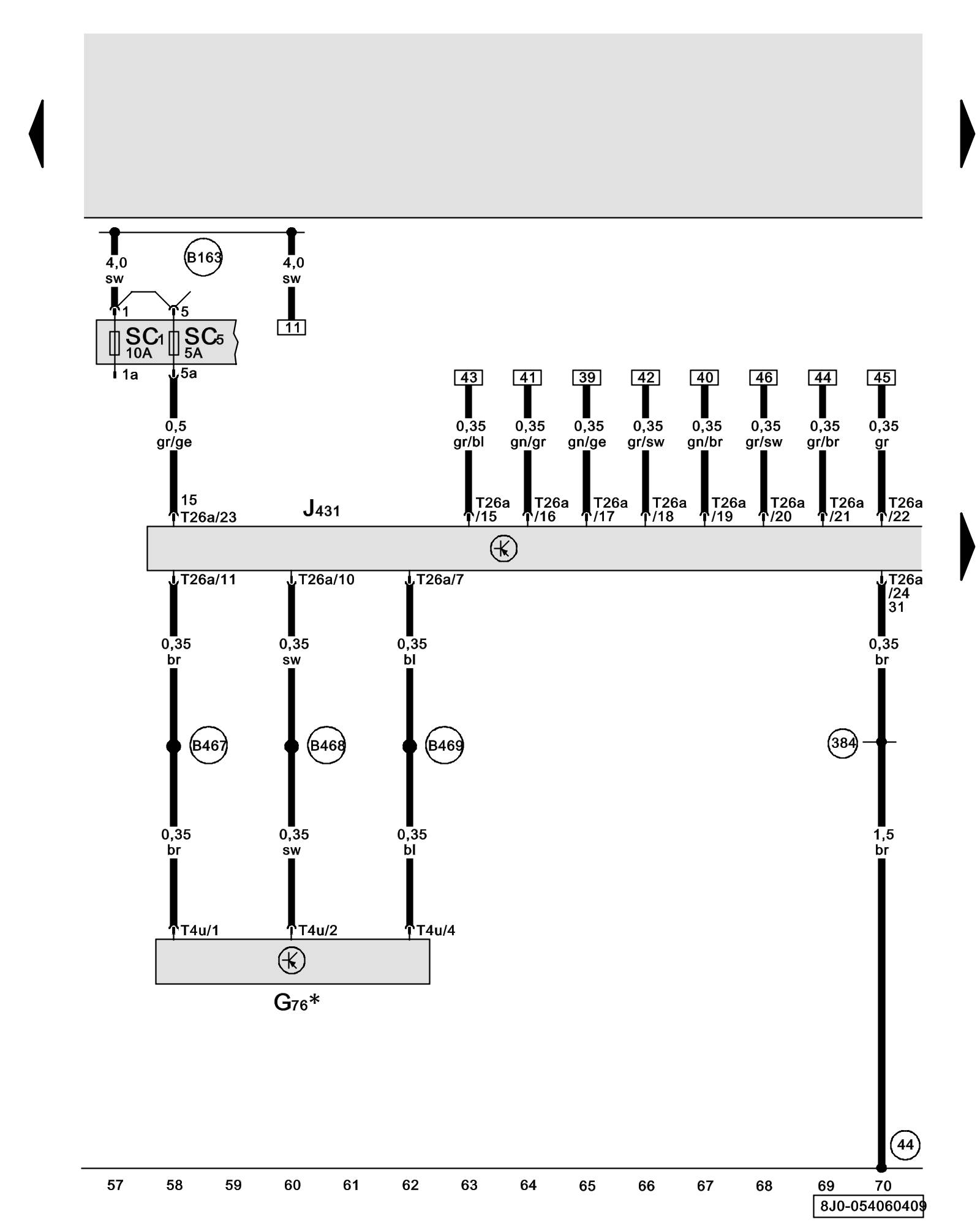

Diagram 54/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Headlamp Range Control Module, Left Rear Level Control System Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G76 - Left Rear Level Control System Sensor Locations

J431 - Headlamp Range Control Module Component Locations

SC1 - Fuse 1 (on fuse panel C)

SC5 - Fuse 5 (on fuse panel C)

T4u - 4-Pin Connector, black, on left rear level control system sensor

T26a - 26-Pin Connector, black, on headlamp range control module

(44) - Ground Connection (on left lower A-pillar) Locations

(384) - Ground Connection 19 (in main wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B467) - Connection 3 (in main wiring harness)

(B468) - Connection 4 (in main wiring harness)

(B469) - Connection 5 (in main wiring harness)

* - Not for electronic damping
