Oil Pump

Oil Pump

Special tools, testers and auxiliary items required

• Assembly Tool (T10118)

Removing

- Remove the noise insulation.

- Remove the frame for the noise insulation.

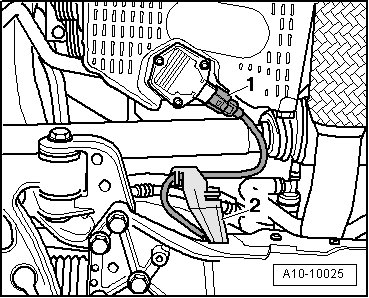

- Disconnect the connector - 1 - from the oil level thermal sensor (G266).






- Drain engine oil.

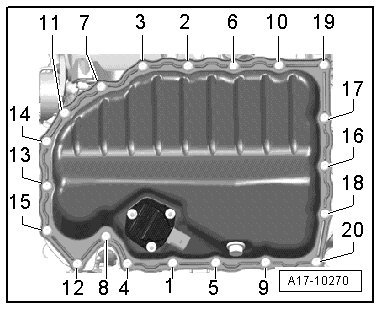

- Remove the bolts - 1 through 20 -.






- Remove oil pan, if necessary loosen by applying light strikes with a rubber hammer.

- Remove the oil baffle - arrows -.

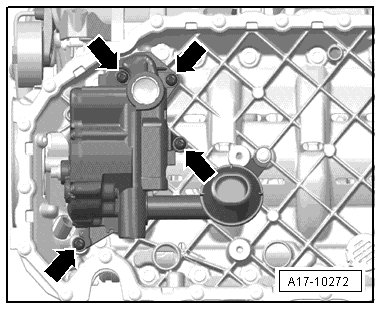

- Remove the bolts - arrows - and the oil pump.

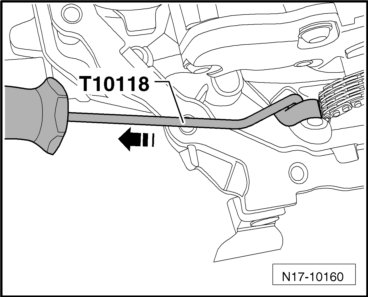

- Pull the chain tensioner in the direction of the - arrow - using the (T10118) and remove the oil pump with the chain sprocket.






Installing

• For the correct tightening specifications, refer to => [ Oil Pan and Oil Pump Overview ] Oil Pan and Oil Pump Overview.

Install in reverse order of removal. Note the following:

- Make sure both alignment bushings for centering the oil pump are in there.

- Replace the baffle plate.

- Install lower oil pan. Refer to => [ Lower Oil Pan ] Lower Oil Pan.
