Procedures

Engine, Securing to Engine and Transmission Holder

Special tools, testers and auxiliary items required

• Engine Sling (2024 A)

• Engine/Transmission Jack (V.A.G 1383 A)

• Shop Crane -Load Cap=700-1200 kg (VAS 6100)

• Engine and Transmission Holder (VAS 6095)

Procedure

• The transmission is separated from the engine. Refer to => [ Engine and Transmission, Separating ] Engine and Transmission, Separating.

- Hook the (2024 A) to the engine and to the (VAS 6100).

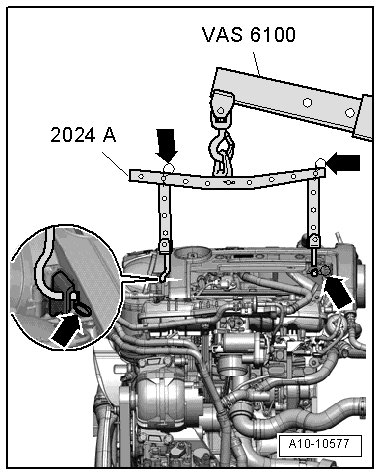

• To be aligned to the center of gravity of the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.

Loose engine support bridge components could cause an accident.

• Secure the mounting hooks and pins on the engine support bridge using securing pins - arrows -.

- Lower the engine from the (V.A.G 1383 A) using the (VAS 6100).

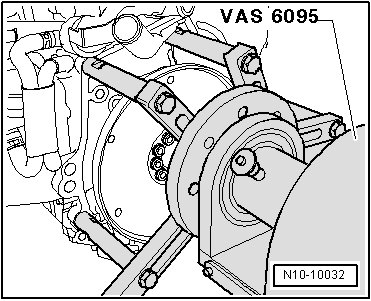

- Secure the transmission side of the engine to the (VAS 6095) as illustrated.
