Glove Compartment Lamp (W6)

Glove Compartment Lamp (W6)

Removing






- Turn light switch into "0" position.

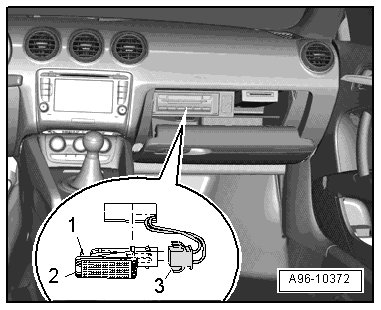

- Press in catch - 1 - using a flat screwdriver and pry out glove compartment lamp - 2 -.

- Disconnect electrical connector - 3 -.

• The glove compartment lamp LED cannot be replaced separately.

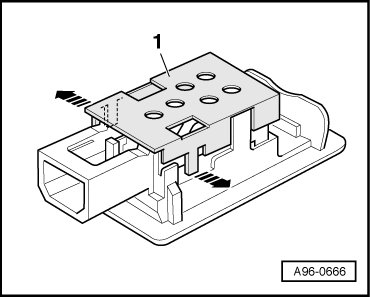

- To replace the bulb, release the retaining clips - arrows - and remove the cover - 1 - over the bulb.






- Remove the bulb - 1 - (12V, 5 W) from the socket - 2 - on the rear side of the glove compartment lamp.






Installing

Install in reverse order of removal. Note the following:

- Connect electrical connector.

- Insert glove compartment lamp into opening and engage on opposite side.
