Instrument Panel Dimmer Switch (E20), Headlamp Adjuster (E102), Daytime Running Lamp Disable Switch (E579)

Instrument Panel Dimmer Switch (E20), Headlamp Adjuster (E102), Daytime Running Lamp Disable Switch (E579)

Depending on vehicle equipment, the Instrument Panel Illumination Dimmer Switch (E20) , Headlamp Adjuster (E102) or Daytime Running Lamps Disable Switch (E579) are in the same housing. These parts cannot be obtained separately. Refer to Electronic Parts Catalog (ETKA).

Removing






- Remove light switch. Refer to => [ Light Switch (E1) with// ] Light Switch (E1) with (E20)/(E102)/(E579).

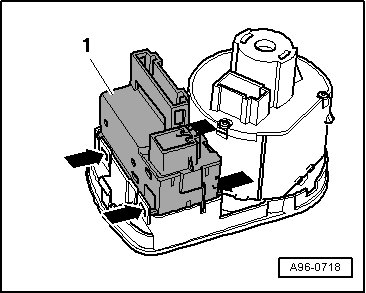

- Release retaining clips - arrows - and remove housing - 1 -.

Installing

Install in reverse order of removal. Note the following:

- Install light switch. Refer to => [ Light Switch (E1) with// ] Light Switch (E1) with (E20)/(E102)/(E579).
