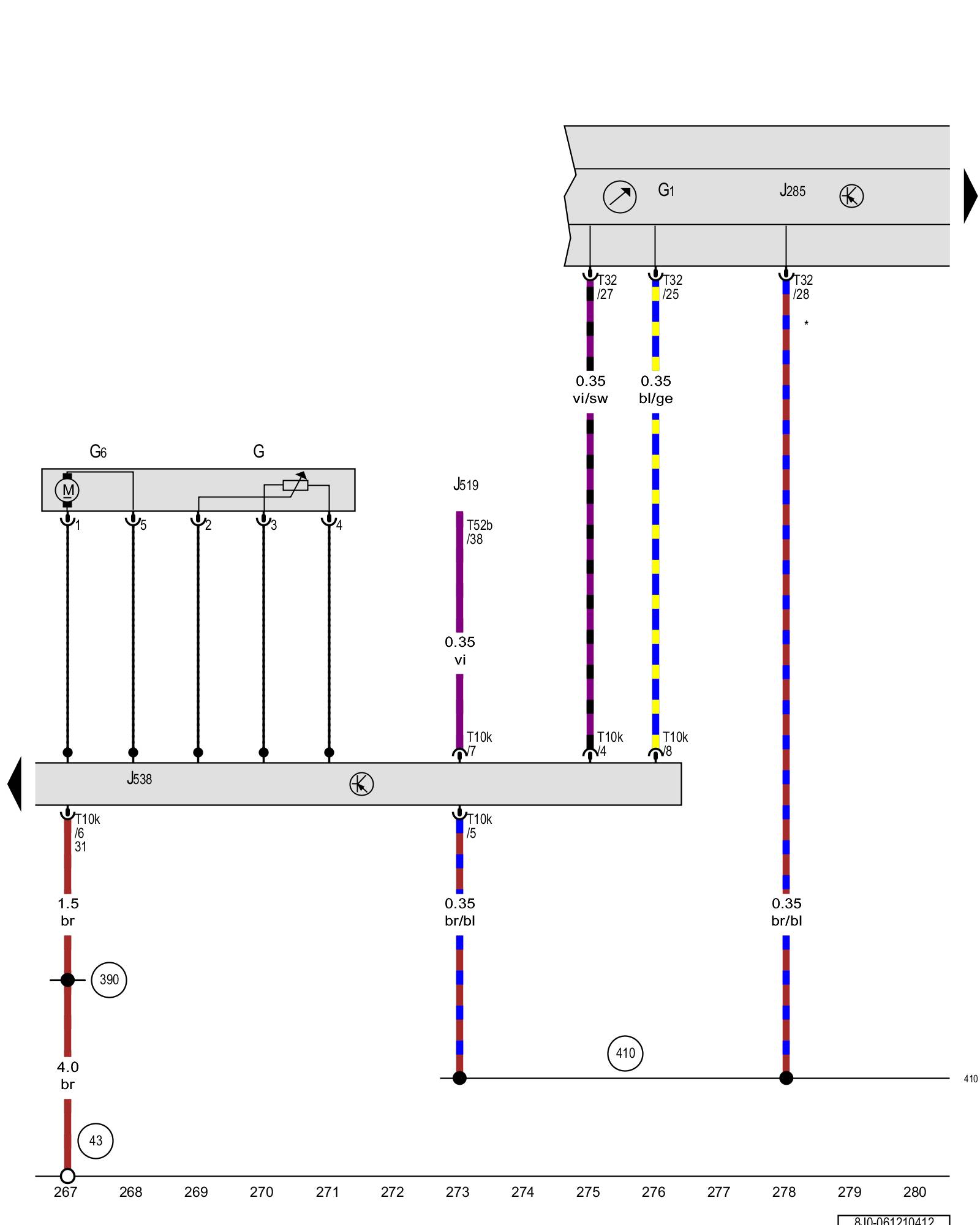

Diagram 61/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel level sensor, Transfer fuel pump, Instrument cluster control module, Fuel pump control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel level sensor Locations

G1 - Fuel gauge

G6 - Transfer fuel pump Locations

J285 - Instrument cluster control module Component Locations

J519 - Vehicle electrical system control module Component Locations

J538 - Fuel pump control module Component Locations

T10k - 10-pin connector Locations

T32 - 32-pin connector Locations

T52b - 52-pin connector Vehicle Electrical System Control Module -J519- from June 2009

(43) - Ground connection on A-pillar, lower right

(390) - Ground connection 25 (in main wiring harness)

(410) - Sensor ground connection 1 (in main wiring harness)

* - Sensor ground output
