Diagram 4/2 (Tracks 1-14)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

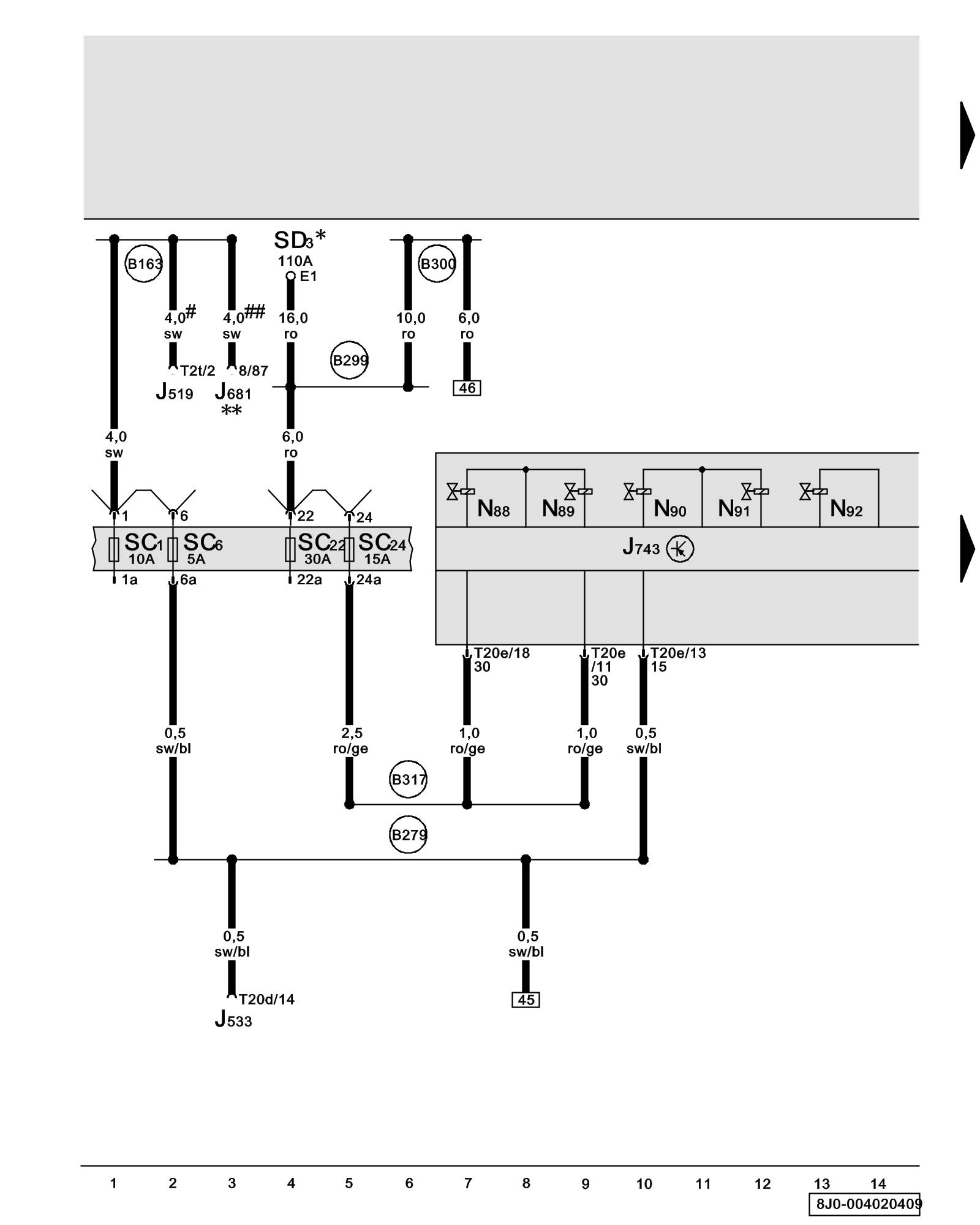

Direct Shift Gearbox (DSG) Mechatronic, Solenoid Valves, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Component Locations

J533 - Data Bus On Board Diagnostic Interface Component Locations

J681 - Power Supply Relay 2 (terminal 15) Relay Carrier on Vehicle Electrical System Control Module, from June 2009

J743 - Direct Shift Gearbox (DSG) Mechatronic 6-Speed DSG Transmission 02E Overview

N88 - Solenoid Valve 1 6-Speed DSG Transmission 02E Overview

N89 - Solenoid Valve 2 6-Speed DSG Transmission 02E Overview

N90 - Solenoid Valve 3 6-Speed DSG Transmission 02E Overview

N91 - Solenoid Valve 4 6-Speed DSG Transmission 02E Overview

N92 - Solenoid Valve 5 6-Speed DSG Transmission 02E Overview

SC1 - Fuse 1 (on fuse panel C)

SC6 - Fuse 6 (on fuse panel C)

SC22 - Fuse 22 (on fuse panel C)

SC24 - Fuse 24 (on fuse panel C)

SD3 - Fuse 3 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

T2t - Double Connector, black (Connector L), on vehicle electrical system control module Vehicle Electrical System Control Module -J519- Through May 2009

T20d - 20-Pin Connector, black, on data bus on board diagnostic interface Locations

T20e - 20-Pin Connector, on Direct Shift Gearbox (DSG) Mechatronic

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B279) - Plus Connection 3 (15a) (in main wiring harness)

(B299) - Plus Connection 3 (30) (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

(B317) - Plus Connection 3 (30a) (in main wiring harness)

* - Main fuse panel, in right rear luggage compartment on battery

** - Relay Carrier on Vehicle Electrical System Control Module

# - Through May 2009

## - from June 2009
