Front Suspension

Special Tools

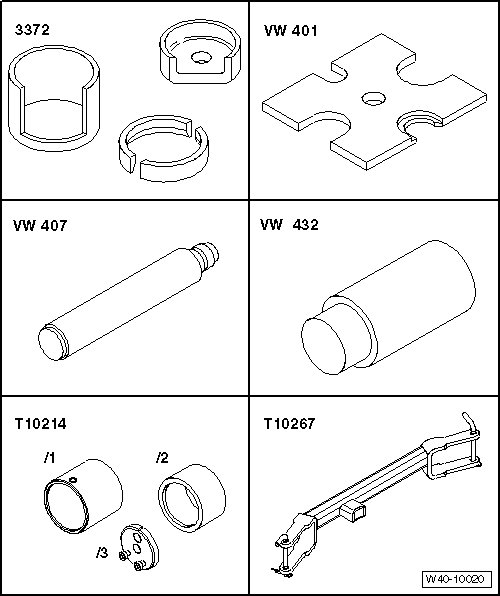

Special tools, testers and auxiliary items required

• Installation Device (3372)

• Thrust Plate (VW 401)

• Punch (VW 407)

• Arbor 50 mm Diameter (VW 432)

• Assembly Tool (T10214)

• Assembly Tool (T10267)






Special tools, testers and auxiliary items required

• Punch (VW 411)

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Sleeve (VW 426)

• Punch (VW 412)

• Assembly Tool (T10219)

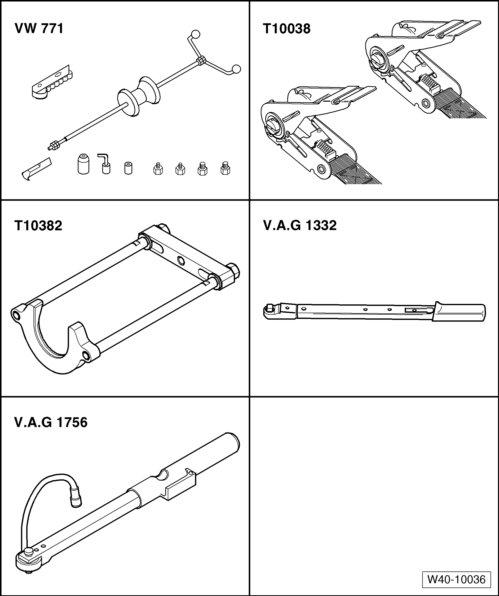

Special tools, testers and auxiliary items required

• Slide Hammer - Complete Set (VW 771)

• Tensioning Strap (T10038)

• Puller (T10382)

• Torque Wrench (V.A.G 1332)

• Digital Torque Wrench (V.A.G 1756)

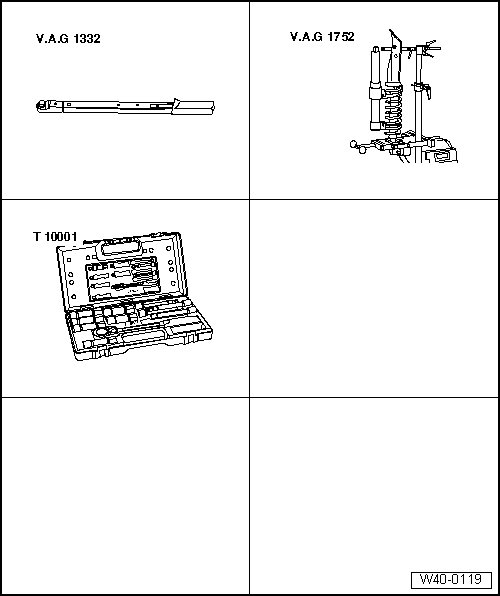

Special tools, testers and auxiliary items required

• Torque Wrench 40-200 Nm (V.A.G 1332)

• Spring Compressor (V.A.G 1752/1)

• Spring Holder (V.A.G 1752/4)

• Shock Absorber Set (T10001)

• Ratchet (commercially available)

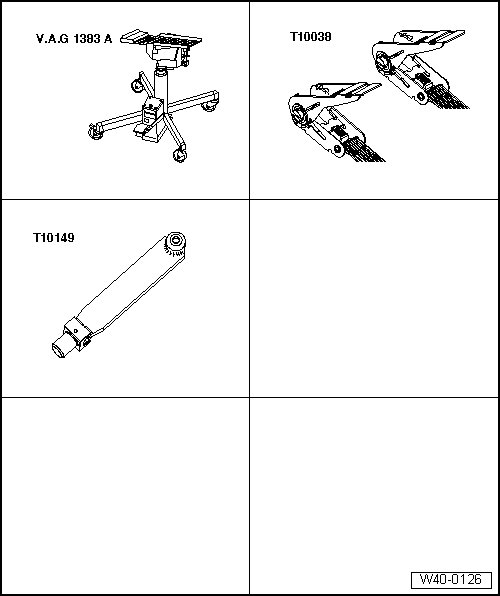

Special tools, testers and auxiliary items required

• Engine/ Gearbox jack (V.A.G 1383 A)

• Tensioning Strap (T10038)

• Wheel Hub Support (T10149)

Special tools, testers and auxiliary items required

•






Special tools, testers and auxiliary items required

• Ball joint puller (3287 A)

• Digital Torque Wrench (V.A.G 1756)

• Ring Spanner Insert VAG 1332/10 (V.A.G 1332/10)

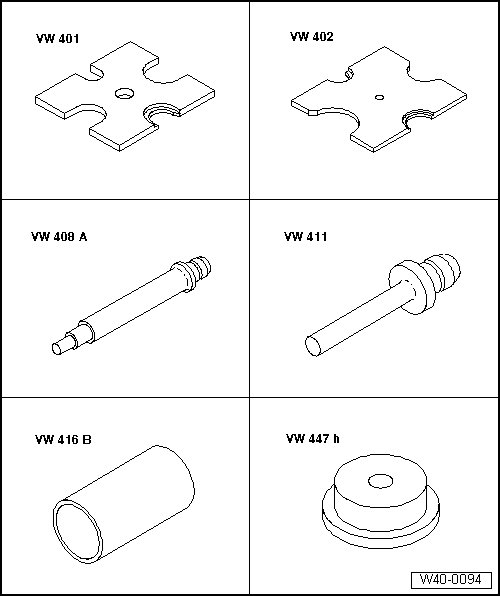

Special tools, testers and auxiliary items required

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 408 A)

• Punch (VW 411)

• Sleeve (VW 416 B)

• Thrust pad (VW 447 H)






Special tools, testers and auxiliary items required

• Hose clamp pliers (V.A.G 1275)

• Torque wrench (V.A.G 1331)

• Torque Wrench 40-200 Nm (V.A.G 1332)

• CV Joint Boot Clamp Tool (V.A.G 1682)

• Assembly Tool (T10065)

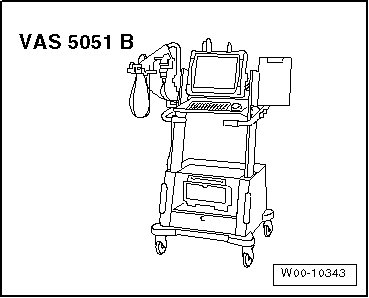

Vehicle Diagnostic, Testing and Information System (VAS 5051B) with corresponding diagnostic cable.

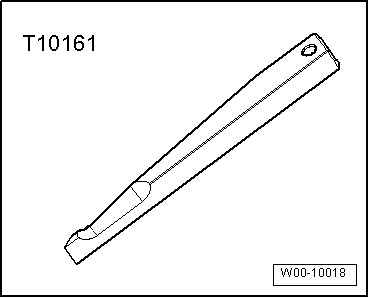

Wedge (T10161)

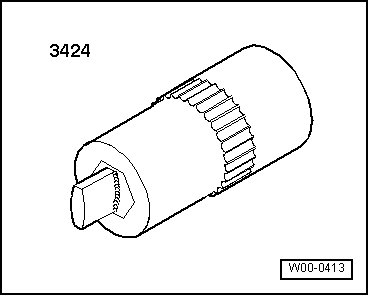

Spreader (3424)

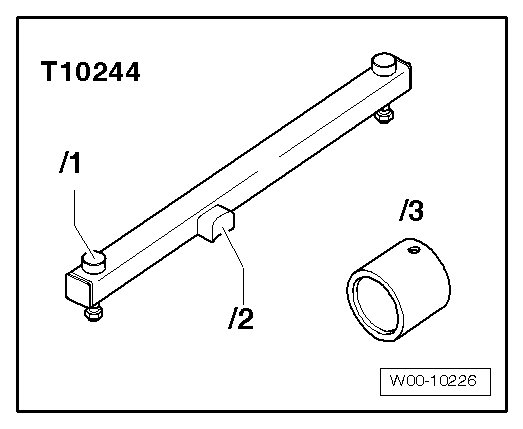

Tube from Assembly Tool (T10244/3)






Socket 24 mm (T10361)
