Selector Lever Handle with Side Locking Button

Selector Lever Handle with Side Locking Button

Special tools, testers and auxiliary items required

• Hose Clamp Pliers (V.A.G 1275)

• Cable tie

Removing






• Remove the selector lever handle and selector lever boot.

- Set the parking brake.

- Move the selector lever into "N".

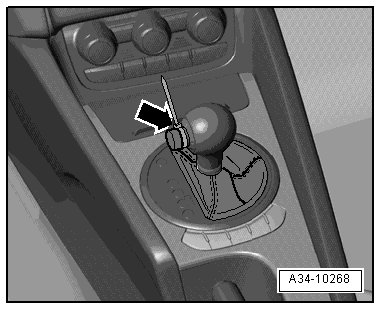

- Secure the locking button in its extended position with a cable tie - arrow - as illustrated.

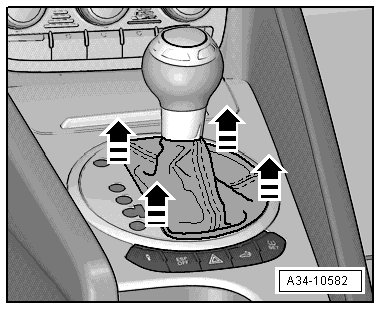

- Unclip the selector lever boot and remove it - arrows -.

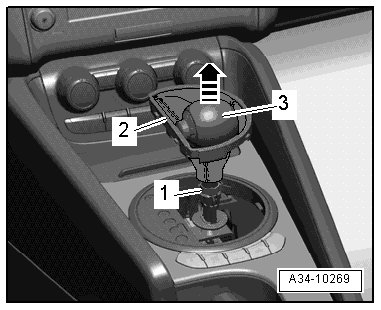

- Fold the selector lever boot - 2 - upward and over the selector lever handle - 3 -.






- Open the clamp - 1 -.

- Remove the selector lever handle and selector lever boot - arrow - being careful not to touch the locking button while doing this.

Installing






Install in reverse order, paying attention to the following:

• To install, locking button on selector lever handle must be extended as far as the stop and secured using a cable tie - arrow - or the assembly aid delivered from the factory for the new handle.

• If the locking button was not secured, it must not be pulled out of the selector lever handle with mechanical tools. Instead, position a compressed air gun at the bottom of the handle and press the locking button out and then secure it.

- Install the selector lever handle on the selector lever.

• The button faces the driver.

• When doing this, handle must engage into ring groove of the selector lever.

- Remove the cable ties.

• The locking button mechanism engages in the selector lever vertical groove; if not, press locking button back into selector lever handle.

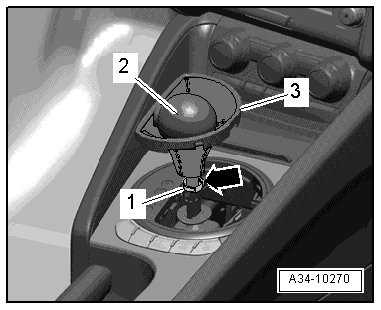

- Install the clamp - 1 -.






• The tab - arrow - on the clamp faces forward and to the right.

- Clamp the selector lever handle - 2 - to the selector lever with the clamp using (V.A.G 1275).

- Install the selector lever boot frame - 3 - to boot trim.
