Right Flange Shaft

Right Flange Shaft

Special tools, testers and auxiliary items required

• Oil Collecting and Extracting Device (V.A.G 1782)

• Puller (T10037)

• Socket and Extended Bit (T10107)

Removing

• General repair instructions, refer to => [ Repair Information ] 02EA (S-Tronic) Transmission.

• Observe cleanliness rules when working on transmissions, refer to => [ Clean Working Conditions ] 02EA (S-Tronic) Transmission.

- Remove right drive axle.

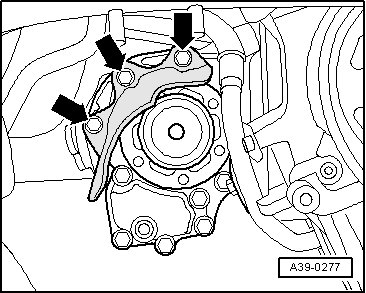

- Remove right drive axle heat shield - arrows -.






• The heat shield on a vehicle with a 3.2L MPI engine is shown in the illustration.

- Place the (V.A.G 1782) under the transmission.

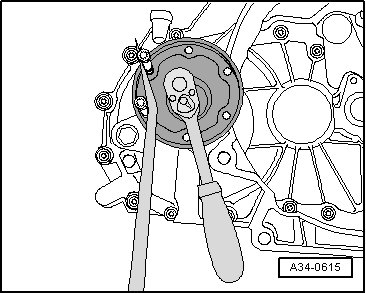

- Remove right flange shaft bolt with (T10107) by installing 2 bolts in the flange and counter holding flange shaft with assembly lever.

- Install (T10037) on right flange shaft.

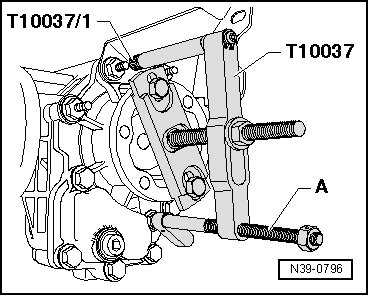

- Align the (T10037) with the knurled nut (T10037/1) and the lower support - A - parallel to the flange.

- Remove flange shaft.

Installing

Install in reverse order, paying attention to the following:

Tightening specifications, refer to:

• => [ Flange Shaft, Seals and Bracket on Bevel Box Overview ] Description and Operation

• => [ Right Drive Axle Heat Shield for Vehicles with 2.0L TFSI Engine - Tightening Specification ] Description and Operation

• => [ Right Drive Axle Heat Shield for Vehicles with 3.2L MPI - Tightening Specification ] Description and Operation

- Carefully install the flange shaft while rotating it at the same time.

- Install the flange shaft.

- Install the right drive axle.

- Axle oil level, checking and filling. Refer to => [ Axle Oil Level, Checking and Filling ] Axle Oil Level, Checking and Filling.
