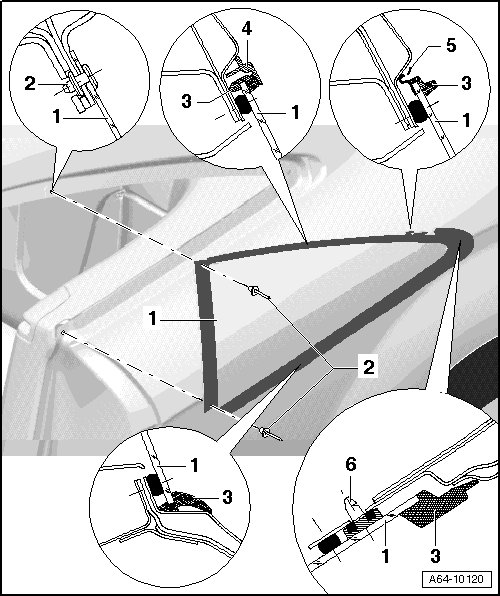

Side Window Assembly Overview

Side Window Assembly Overview






1 Side Window

• When installing, press in window with securing pin at C-pillar, then insert in window opening and secure with pop rivets in B-pillar area.

• If a removed window is reinstalled, window must be secured to C-pillar with adhesive tape.

2 Pop rivet

• To remove side window, drill out rivet heads and drive out rivet shafts.

3 Retaining clip

4 Roof trim molding

• Before roof trim molding can be removed from the clips, pop rivets in upper door area must first be removed. Refer to => [ Roof Trim Molding ] Roof Trim Molding.

5 Securing pin

• No replacement part

• Is cut through during window removal
