Outside Air Temperature Sensor






Outside Air Temperature Sensor

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing






- Remove front bumper cover.

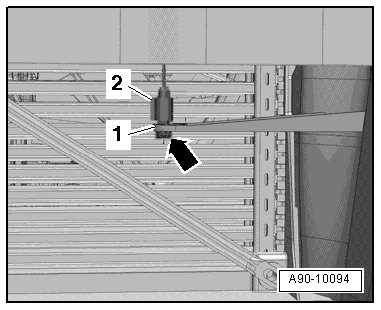

- Disconnect the electrical connector - 2 -.

- Carefully press the retaining clips together - arrow - and remove the outside air temperature sensor (G17) - item 1 - upward from the bracket.

Installing

Install in reverse order of removal, observing the following:

- Install the front bumper cover.
