Rear Axle Camber, Adjusting

Rear Axle Camber, Adjusting

Special tools, testers and auxiliary items required

• 18 mm Socket (T10001)

• Insert Tool (T10179)

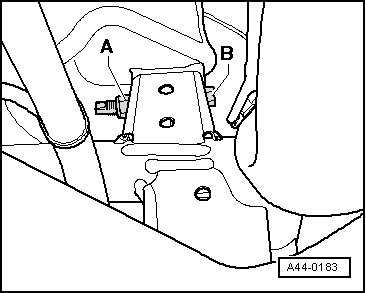

- Remove upper transverse link to subframe connection nut - A - and loosely install new nut.

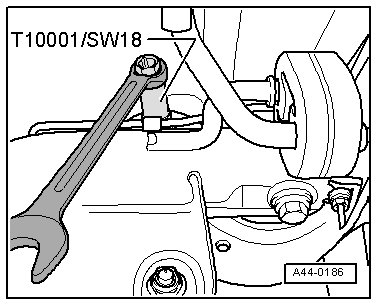

- Set the camber by turning the eccentric bolt - B - with the (T10001).






• The maximum adjustment range is 90° to left or right of center position.

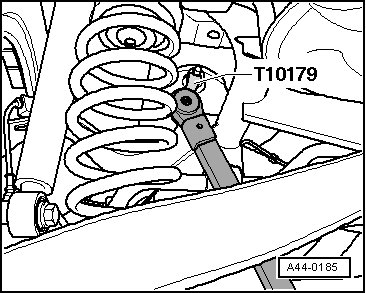

- Tighten nut - A - with (T10179).






- Tightening specifications, refer to => [ Subframe, Diagonal Brace, Lower Transverse Link, Upper Transverse Link, Tie Rod and Level Control System Overview ] Subframe, Diagonal Brace, Lower Transverse Link, Upper Transverse Link, Tie Rod and Level Control System Overview.

- Use special tool as follows.






- After tightening nut - A -, check camber value once more. Refer to => [ Wheel Alignment Specifications ] .
