Oil Pan, Engine
Fastener Tightening Specifications Lower
Oil Pan - Tightening Sequence
-

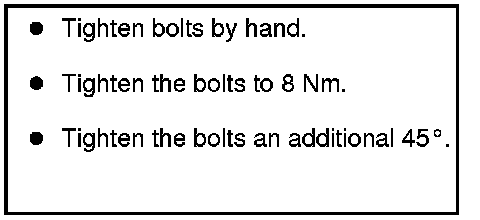

Tighten bolts in 3 stages in -
1 to 20 - sequence as follows:
Upper
Oil Pan - Tightening Sequence
-

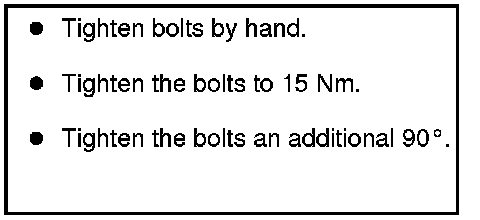

Tighten bolts in 3 stages in -
1 to 14 - sequence as follows:
•
There may be 13 bolts installed, depending on the version.
Oil Separator Tightening Sequence
-
Tighten the bolts to 9 Nm in the following sequence: -
1 to 9 -.
