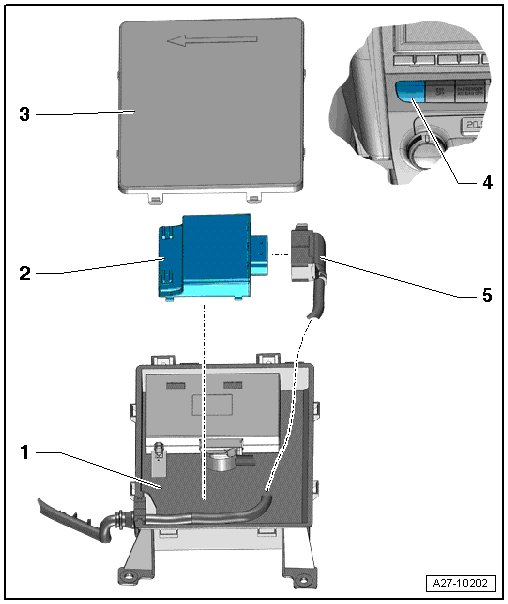

Start/Stop System Overview
Start/Stop System Overview 1 Electronics Box •
For the voltage stabilizer
2 Voltage Stabilizer (J532) •
Removing and installing => [ Voltage Stabilizer ]
Power and Ground Distribution 3 Cover •
For the electronics box
4 Start/Stop Mode Button (E693) •
Removing and installing => [ Start/Stop Mode Button ]
Start/Stop Mode Button 5 Electrical Connector
