Instruments - Cannot Reset Service Interval Display
90 - Service interval display cannot be reset90 11 27
2026756/2
August 4, 2011

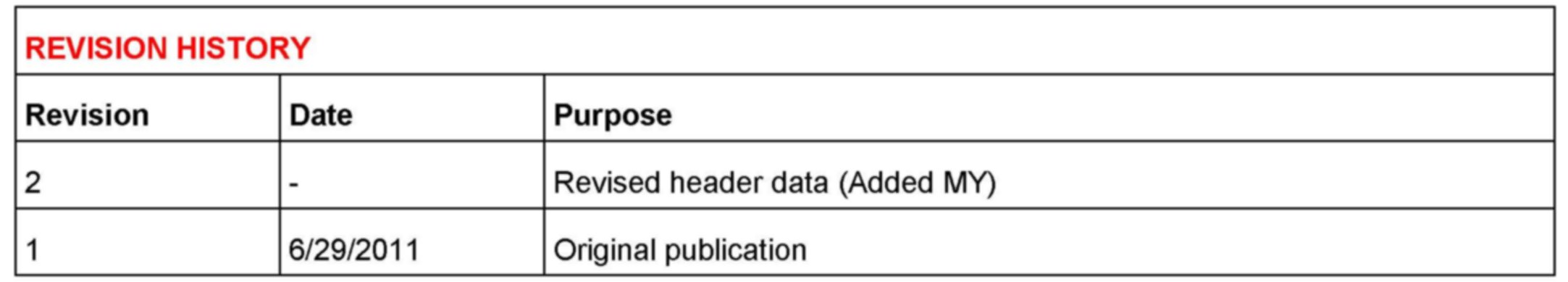

Supersedes Technical Service Bulletin Group 90 number 11 - 25 dated June 29, 2011 for reasons listed below.

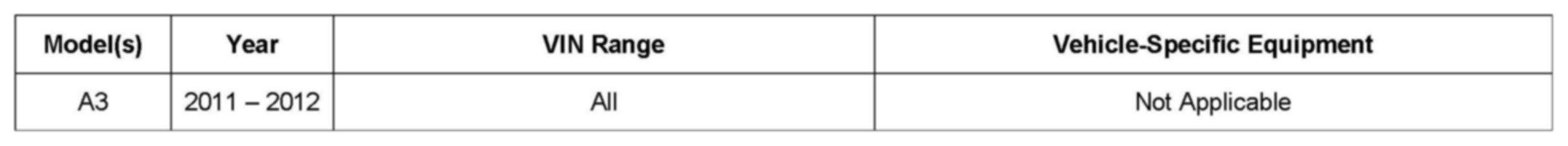

Affected Vehicles
Condition
The service interval display cannot be reset.
Technical Background
If the service interval display is reset under the menu point Service Work in Guided Functions, or in Guided Fault Finding, the counter for the mileage and time related service may not be reset. Therefore, Service due or Service! is still shown.
Production Solution
Not applicable.
Service
1. In Self Diagnosis, enter address code 17 (Instrument Cluster), and change adaptation channels 53 and 55 to zero. Do not replace the instrument cluster for this concern.
2. Carry out all service work as before.

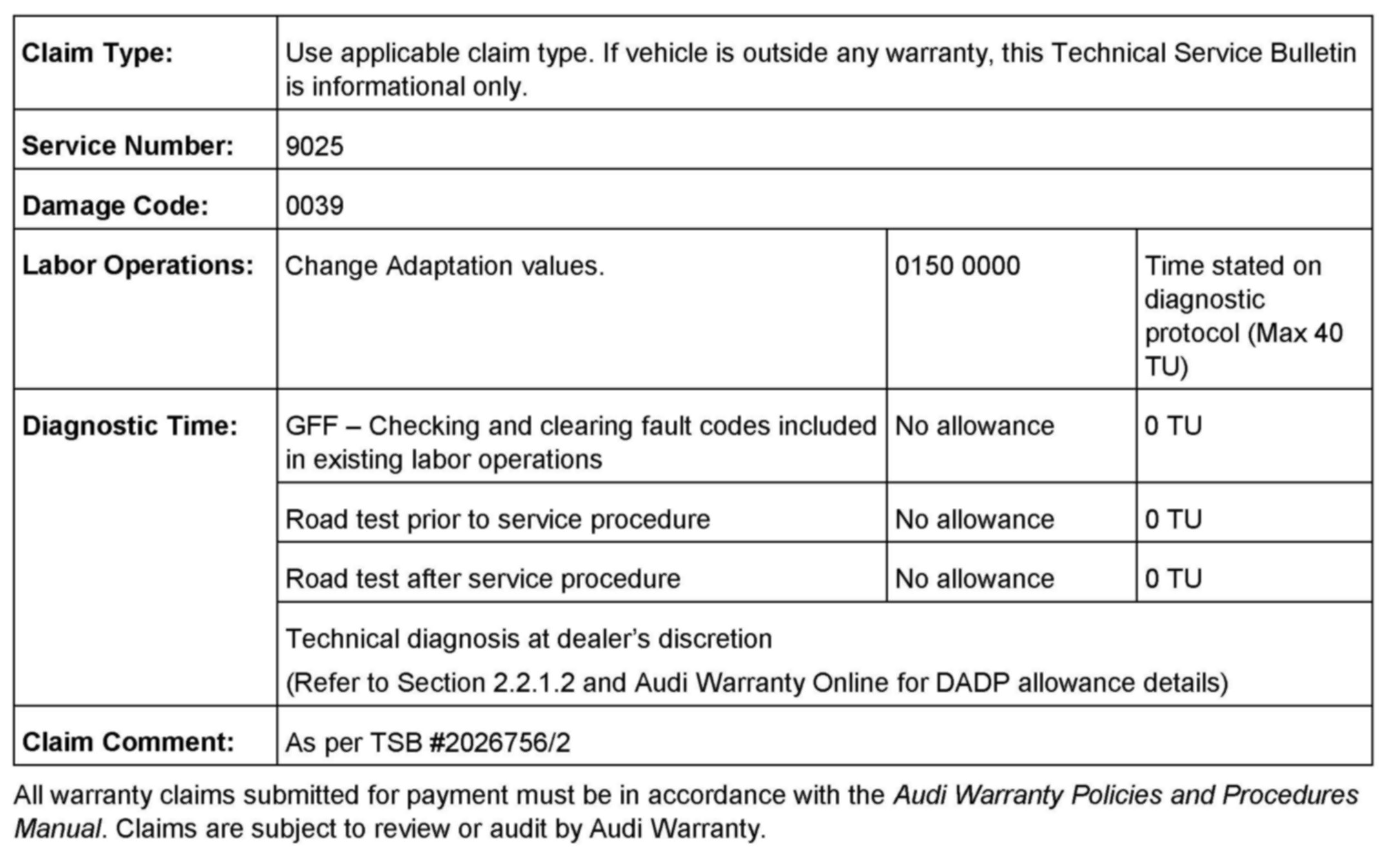

Warranty
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
