Front Door Window Guide
Window Guide

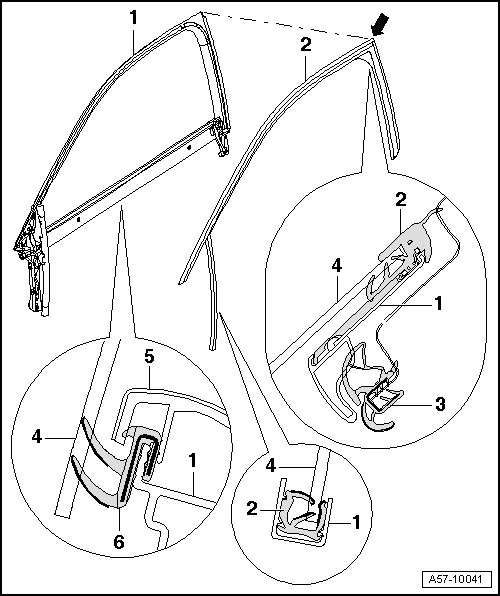

1 Window Frame
• Removed => [ Window Frame ] Window Frame and Window Regulator
2 Window Guide
• Seal must not be installed by knocking it on, rather seal must be pressed in.
• Use soapy water to assist assembly of seal.
• Slide on at sides onto window frame or press into guide on A-pillar.
• Use soap solution to assist assembly.
• Securing piece must engage audibly at corner - arrow -, adhere further if necessary
3 Inner Door Seal
4 Door Window
5 Door Trim
• Removed
6 Inner Window Recess Seal
