Internet Antenna (R266)

Internet Antenna (R266)

The internet antenna (WLAN-Antenna) is located under the glove compartment on the air guide channel.

Removing

- Remove the glove compartment.

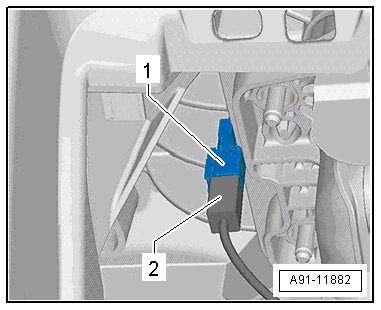

The internet antenna is attached to the air guide channel.

- Disconnect the connector - 2 - from the internet antenna - 1 -.






- Loosen the internet antenna - 1 - from the remaining adhesive with a small screwdriver.

Installing

- Always use isopropanol to clean the remaining adhesive off of the air guide channel.

- Remove the protective film from the adhesive surface of the internet antenna.

- Press the internet antenna - 1 - against the adhesive surface on the air guide channel and hold it for about 10 seconds.

- Perform the rest of the installation in reverse order.
