Digital Sound System Control Module (J525), CAN

Digital Sound System Control Module (J525), CAN

The digital sound system control module is located behind the luggage compartment left side trim.

- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault Finding".

Use the vehicle diagnostic tester.

- Turn off all electrical consumers.

- Remove the key.

Removing

- Open the left storage compartment in the luggage compartment

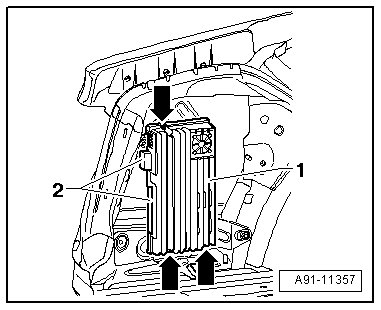

- Loosen the bolts - arrows - on the digital sound system control module - 1 - and swivel it to the side.






- Disconnect electrical connection - 2 - on digital sound system control module - 1 - and remove it.

Installing

- Install in reverse order of removal.

Tightening specifications, refer to => [ Sound Systems Overview ] Sound Systems Overview.
