Control Modules Assembly Overview







Component locations: Radio / Navigation Systems

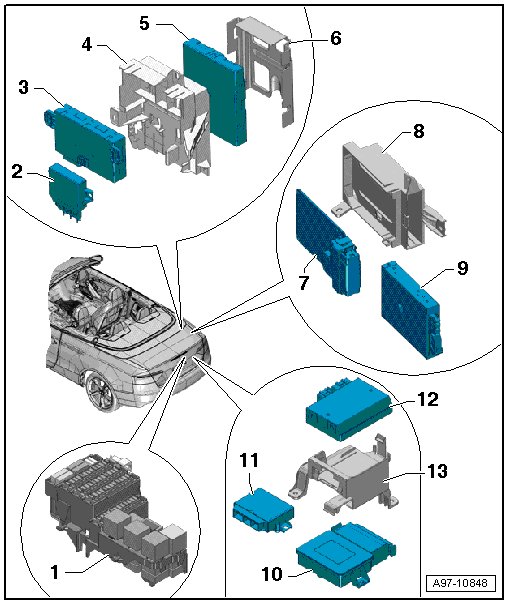

Control Modules Assembly Overview







1 - Fuse Panel F -SF-

2 - Parking Aid Control Module -J446-

3 - Convertible Top Control Module -J256-

5 - Comfort System Central Control Module -J393-

7 - Electronic Damping Control Module -J250-

9 - Rear View Camera System Control Module -J772-

10 - Electro-Mechanical Parking Brake Control Module -J540-

11 - Vehicle Positioning System Interface Control Module -J843-

12 - Towing Recognition Control Module -J345-
