Memory Positioning Switch: Service and Repair

Driver Seat Memory Program Control Head (E97)

Removing






- Remove the switch trim..

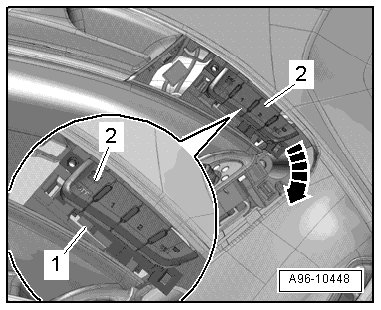

- Press the securing clip - 1 - to the side and slide the driver seat memory program control head (E97) - item 2 - in the - direction of the arrow - out of the door trim.

- Disconnect the electrical connector.

Installing






Install in reverse order of removal, observing the following:

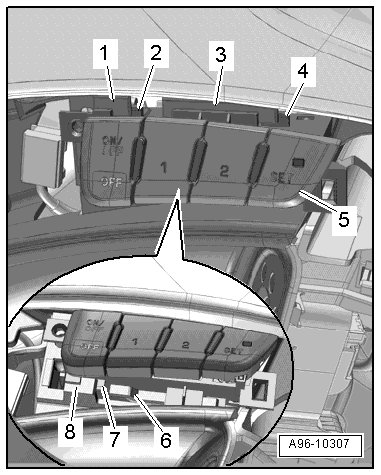

- Position the driver seat memory program control head - item 5 - on the door trim. The retainers - 2, 4 and 7 - must engage behind the guides - 1, 3 and 8 -.

- Slide the driver seat memory control head on until the retaining clips engage - 6 -.

- Install the switch trim..
