Entry Assistance Button Assembly Overview

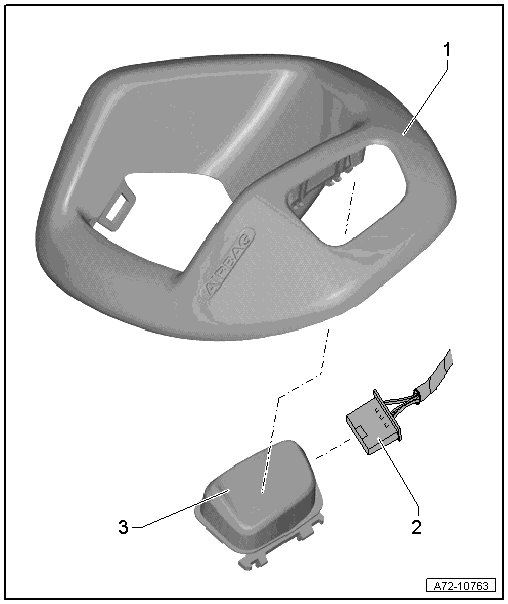

Entry Assistance Button Assembly Overview






1 Entry Assist Trim

• Removing and installing, refer to => [ Entry Assistance Trim ] Entry Assistance Trim

2 Connector

• Entry assistance button

3 Entry Assistance Button

• Driver side: driver entry assistance button (E358)

• Front passenger side: front passenger entry assistance button (E359)

• Removing and installing, refer to => [ Entry Assistance Button ] Entry Assistance Button
