Center Console







Convertible Top Operation Switch and Central Window Regulator Switch Mount

Removing

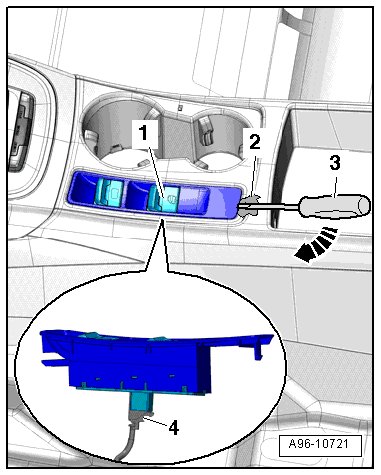

- Carefully pry the convertible top operation switch and central window regulator switch mount - 1 - out of the center console with a narrow screwdriver - 3 - - arrow -. Cover the center console with adhesive tape - 2 - as illustrated.

- Disconnect electrical harness connector - 4 -.

- Remove the convertible top operation switch (E137) / window regulator central switch (E643).

Installing

Installation is reverse of removal, but note the following:

- Press on the mount until it audibly latches.
