Keyless Entry System (front)







Entry and Start Authorization System Overview

Keyless entry system (front)







1 - Electronic steering column lock control module -J764-

3 - Right front exterior door handle touch sensor -G606-
• Sensor in door handle

4 - Access/start authorization button -E408-

5 - Comfort system central control module -J393-
• Behind luggage compartment side trim (right-side)

6 - Antenna amplifier 2 -R111- with Central locking and anti-theft alarm system antenna -R47-

8 - Access/start authorization antenna 1 in vehicle interior -R138- => [ Access/start authorization antenna 1 ] See Image Below.
• Located under the multimedia system operating unit in the center console

9 - Left front exterior door handle touch sensor -G605-
• Sensor in door handle

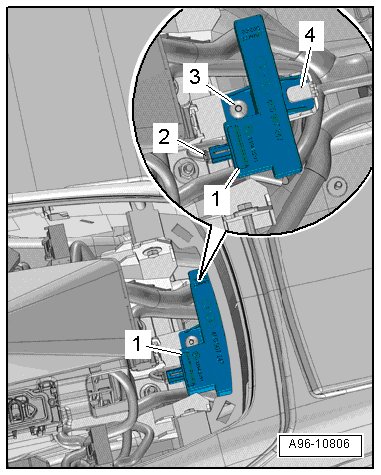

Access/start authorization antenna
1






1 - Access/start authorization antenna 1 in vehicle interior -R138-
