Front Seat Switch Module 2 E667/E668







Front Seat Switch Module 2 E667/E668

Includes Driver seat switch module 2 (E667) / front passenger seat switch module 2 (E668)

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing






- Remove the trim on the sill side. Refer to => [ Sill Side Trim with Front Trim ] Sill Side Trim With Front Trim.

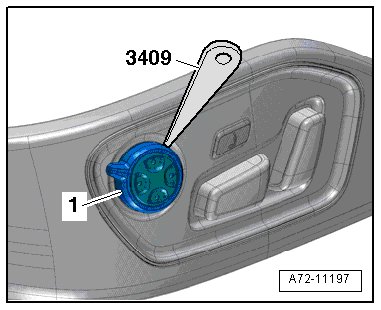

- Carefully unclip rocker - 1 - from the switch module using the trim removal wedge (3409).

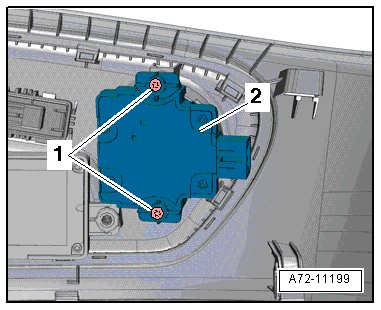

- Remove bolts - 1 - and switch module - 2 -.






Installation






Install in reverse order of removal. Note the following:

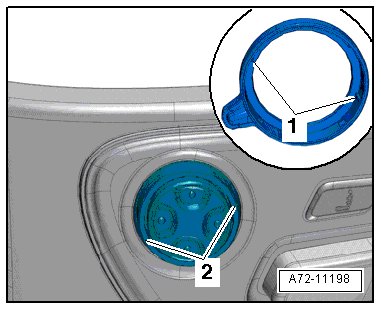

- Insert trim with the tabs - 1 - in the grooves - 2 - on the switch module and press on it until it engages audibly.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Seat Adjustment Control Head and Switch Module Assembly Overview ] Seat Adjustment Control Head and Switch Module Assembly Overview.
