Navigation Component Location Overview







Navigation Component Location Overview

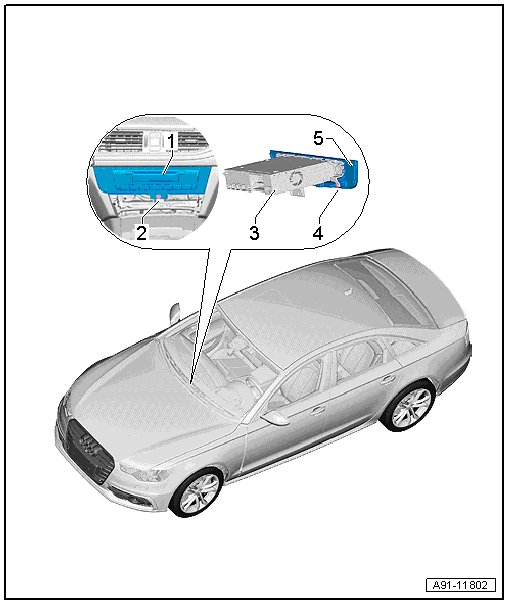

1 Information Electronics Control Module 1 (J794)

• For the navigation connector assignment, refer to => [ MMI Navigation Information Electronics Control Module 1 (J794), 7T2, Connectors ] MMI Navigation Information Electronics Control Module 1 (J794), 7T2, Connectors.

• For the navigation plus connector assignment, refer to => [ MMI Navigation Plus Connectors ] MMI Navigation Plus Connectors.

• Removing and installing, refer to => [ Information Electronics Control Module 1 (J794) ] Information Electronics Control Module 1 (J794).

2 Screw

• 3 Nm

3 Information Electronics Control Module 1 (J794)

4 Screw

• 1 Nm

• Quantity: 4

5 Divider
