Rearview Camera System Control Module (J772) Connectors







Rearview Camera System Control Module (J772) Connectors

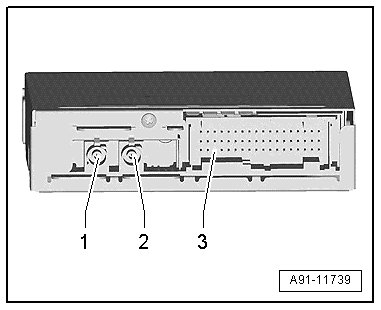

Rear View Camera System Control Module (J772)





1. FBAS input (T2dg) Rearview camera (R189)

2. FBAS output (T2df) to the Information electronics control module 1 (J794)

3. 54-pin connector (T54a)


• Unlisted connector terminals are not used.

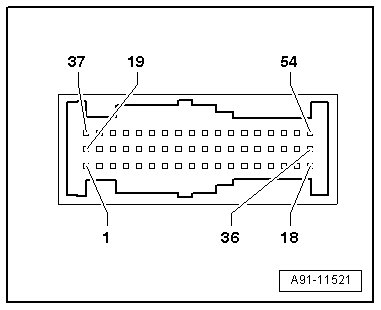

3 - 54-pin Connector (T54a)





39 CAN bus Low (Comfort)
40 CAN bus High (Comfort)
43 Terminal 30
44 Terminal 31
47 Terminal 31 to Rear View Camera (R189)
48 Voltage supply Rear View Camera (R189)
