Rear A/C Display Control Head -E265-

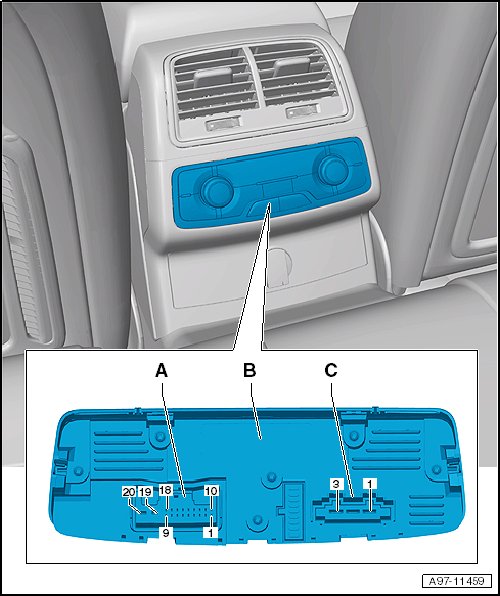

Control modules in rear part of vehicleRear A/C Display Control Head -E265- Component Location: in the rear center console.
A - 3-Pin Connector -T3r- , black B - Rear A/C Display Control Head -E265- C - 20-Pin Connector -T20a- , black
