Front A/C Unit Components, Left







Component Locations: Climatronic / Climatic Systems

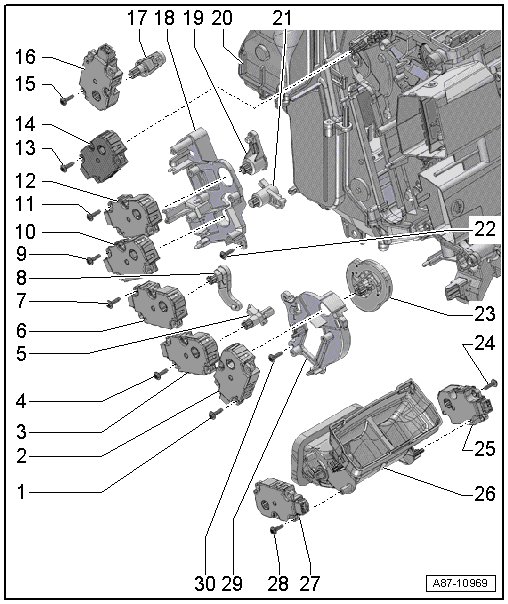

Front A/C Unit Components, left


• Image shown with deluxe version. Basic version similar






2 - Left rear air door motor -V239-

3 - Left rear temperature door motor -V313-

6 - Left footwell door motor -V108-

10 - Left side vent motor -V299-

12 - Left center vent motor -V110-

14 - Defroster door motor -V107-

16 - Left temperature door motor -V158-

25 - Right rear upper body vent motor -V316-

27 - Left rear upper body vent motor -V315-
