Data Bus On Board Diagnostic Interface (J533) Overview

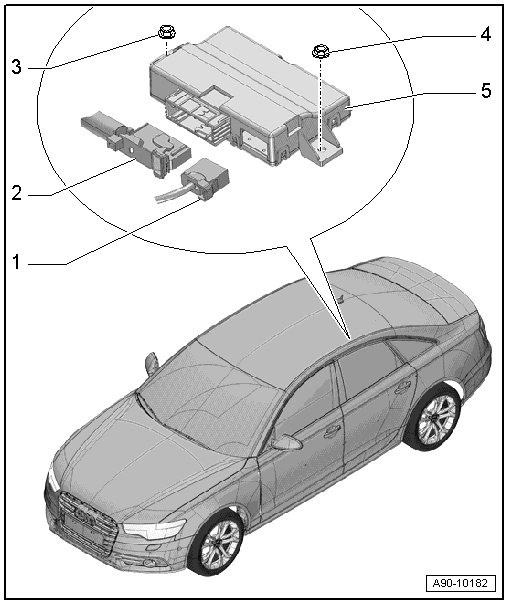

Data Bus On Board Diagnostic Interface (J533) Overview






1 Fiber Optic Cable Connector

• Attach with the cable connector protective cap (VAS 6223/9).

2 Electrical Connector

• For the data bus on board diagnostic interface (J533).

3 Nut

• 2 Nm

4 Nut

• 2 Nm

5 Data Bus On Board Diagnostic Interface (J533)

• Removing and installing, refer to=> [ Data Bus On Board Diagnostic Interface (J533) ] Data Bus On Board Diagnostic Interface (J533).

• Multi-pin connector pin assignment, refer to=> [ Data Bus On Board Diagnostic Interface (J533) Multi-pin Connector, Pin Assignment ] [1][2]Connector Views.
