System Specifications

Fastener Tightening Specifications

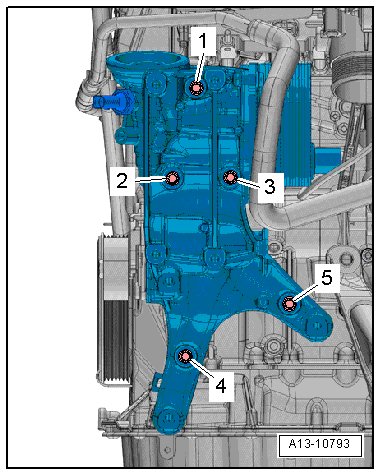

Accessory Assembly Bracket - Tightening Specifications and Tightening Sequence

- Mount the accessory assembly bracket and then mount the bolts - 4 -.






- Tighten bolts in 3 stages in - 1 to 5 - sequence as follows:






Transmission Side Sealing Flange, Tightening Sequence






- Tighten the bolts - 1 through 8 - in the sequence shown:

- 1. Tighten the bolts hand-tight.

- 2. Tighten the bolts to 9 Nm.

Crankshaft, Tightening Sequence

- Tighten the crankshaft bolts in the sequence - 1 to 5 -.






- Tighten the bolts - 1 through 10 - and - arrows - hand-tight.

- Tighten the bolts - 1 through 10 - to 65 Nm.

- Tighten the bolts - 1 through 10 - 90° further using a rigid wrench.

- Tighten the bolts - arrows - to 20 Nm.

- Tighten the bolts - arrows - 90° further using a rigid wrench.
