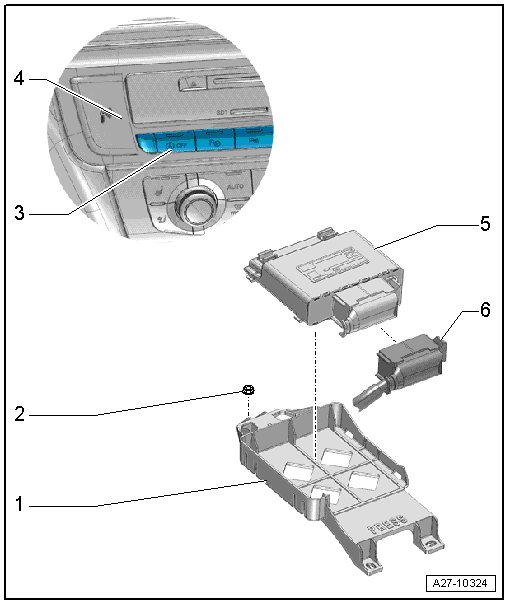

Start/Stop System Overview

Start/Stop System Overview

1 Bracket

• For the voltage stabilizer (J532)

2 Nut

• 3 Nm

3 Start/Stop Mode Button (E693)

• Removing and installing, refer to => [ Switch Unit with (E693), (E581), (E266) ] Switch Unit With (E693), (E581), (E266).

4 Divider

• For information electronics control module 1 (J794)

5 Voltage Stabilizer (J532)

• Removing and installing, refer to => [ Voltage Stabilizer (J532) ] Starting and Charging.

6 Connector
