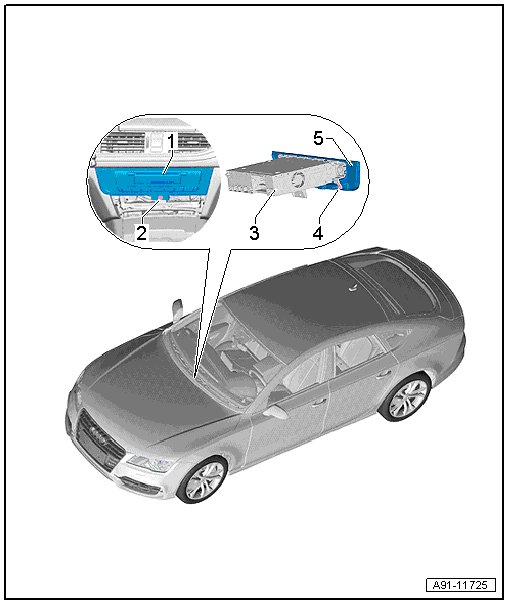

Navigation Overview







Navigation Overview






1 Information Electronics Control Module 1 (J794)

• For the navigation plus connector assignment, refer to => [ MMI Navigation Plus Connector, Information Electronics Control Module 1 (J794) 7T6 ] MMI Navigation Plus Connector, Information Electronics Control Module 1 (J794) 7T6.

• Removing and installing, refer to => [ Information Electronics Control Module 1 (J794) ] Information Electronics Control Module 1 (J794).

2 Screw

• 3 Nm

3 Information Electronics Control Module 1 (J794)

4 Screw (Quantity 4)

• 1 Nm

5 Divider
