Front Subframe Mount: Service and Repair

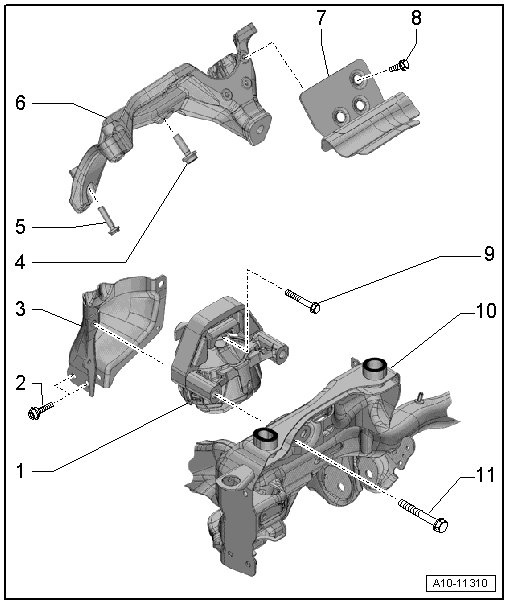

Subframe Mount Overview

1 Engine Mount

• Removing and installing, refer to => [ Engine Mount ] Service and Repair

• Replace in pairs

2 Bolt

• 20 Nm

3 Plate

• For the engine mount

• If the engine mount is faulty, replace the plate

• Check the plate on the opposite side; replace if necessary

4 Bolt

• 40 Nm

5 Bolt

• 20 Nm

6 Engine Support

• Left with Air Conditioning (A/C) compressor bracket

7 Heat Shield

8 Bolt

• 10 Nm

9 Bolt

• Replace

• 90 Nm + 90° turn

10 Subframe

11 Bolt

• 55 Nm
