Keyless Entry System - front







Access/Start Authorization System Overview

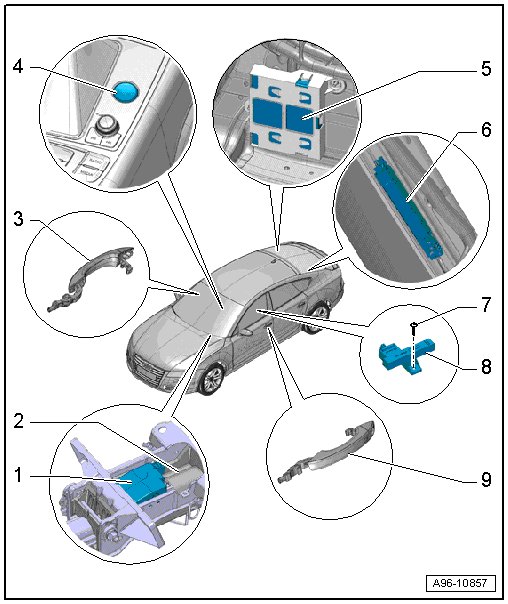

Keyless entry system - front







1 - Electronic steering column lock control module -J764-

2 - Steering column

3 - Right front exterior door handle touch sensor -G606-

4 - Access/start authorization button -E408-

5 - Comfort system central control module -J393-

6 - Antenna amplifier 2 -R111-
• With Central locking and anti-theft alarm system antenna -R47-
• Located on the D-Pillar, top left

8 - Access/start authorization antenna 1 in vehicle interior -R138- => See Image Below.

9 - Left front exterior door handle touch sensor -G605-


Access/start authorization antenna 1 in vehicle interior -R138-






• Below multimedia system operating unit
