Engine Speed Sensor: Service and Repair






Engine Speed Sensor (G28)

Removing






- Remove the rear noise insulation - 2 -.

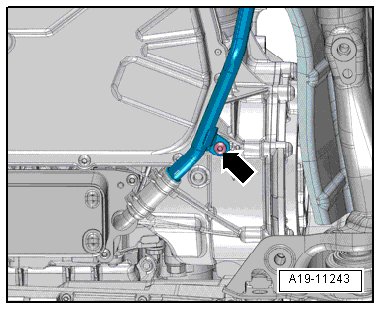

- Remove the bolt - arrow - from the right coolant pipe on the transmission.

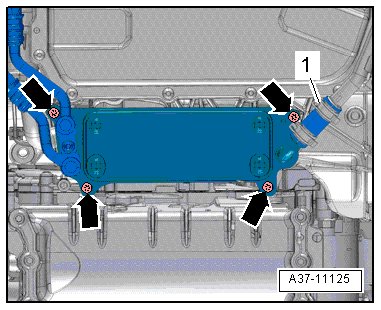

- Remove bolts - arrows - and move the ATF cooler slightly to the side.






• Ignore - 1 -.

- Disconnect the connector - 2 -.






- Remove the bolt - 1 - and remove the Engine Speed (RPM) sensor.

Installing

Install in reverse order of removal. Note the following:

• Tightening specification, refer to => [ Ignition System Overview ] Service and Repair.

- Install the ATF cooler.

- Attach the right coolant pipe to the transmission.

- Install the noise insulation.
