Connector Station, Right A-Pillar







Connector Station, Right A-Pillar

Removal






- Turn off the ignition and disconnect the ground cable from the battery. Refer to => [ Battery, Disconnecting and Connecting ] Service and Repair.

- Remove the front sill panel.

- Push the clip in - direction of arrow - and disengage the connector station - 1 - from the A-pillar.

- Unclip the fuse holder - 2 - from the coupling station.

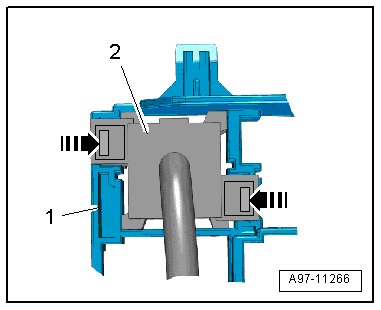

- Release the retainers - arrows - and remove the relay panel - 2 - from the connector station - 1 - to the rear.






• Check the exact connector assignment in the current wiring diagram.

Installation

Install in reverse order of removal. Note the following:

- Install the front sill panel.

- Connect battery. Refer to => [ Connecting ] Service and Repair.
