Vehicle Electrical System Control Module -J519-







Overview of Control Modules

Vehicle Electrical System Control Module -J519-

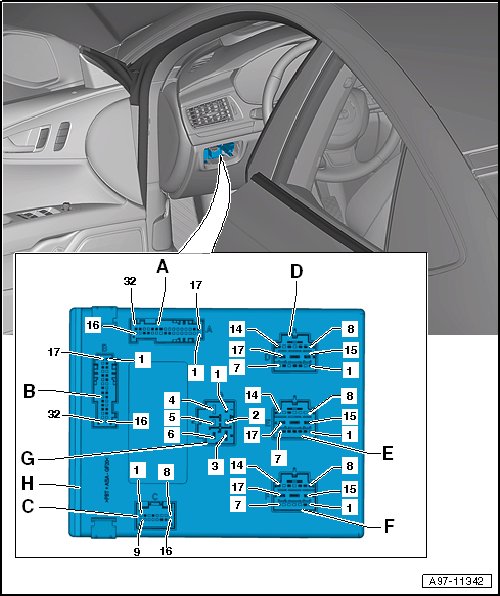

Component Location, left-hand
drive:
Behind driver's left stowage compartment





A - 32-Pin Connector -T32c- , grey

B - 32-Pin Connector -T32a- , black

C - 16-Pin Connector -T16c- , brown

D - 17-Pin Connector -T17d- , black

E - 17-Pin Connector -T17c- , brown

F - 17-Pin Connector -T17e- , red

G - 6-Pin Connector -T6d- , grey

H - Vehicle Electrical System Control Module -J519-
