System Specifications

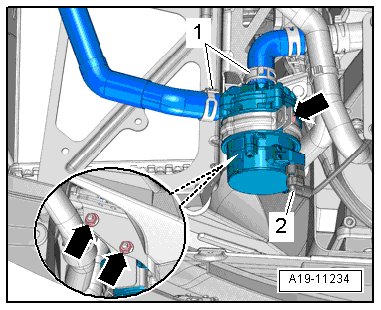

Fastener Tightening Specifications Charge Air Cooling Pump (V188) , Tightening Specifications
-
Tighten the nut -
2 - to 9 Nm.
Engine Temperature Control Temperature Sensor (G694) - Tightening Specification
-
Tighten the engine temperature control temperature sensor (G694) -
1 - to 3 Nm.
